Name: KCD-BC33B-1617-E55W-JAQ
Brand: POSITAL
SKU: KCD-BC33B-1617-E55W-JAQ
Availability: Discontinued

Interface	BiSS C with Preset
Manual Functions	Preset via cable or connector
Interface Cycle Time	≥ 50 µs
Diagnostics	Error and Warning Bits, Register Values
Programming Functions	Via config pin: calibration, WIEGAND sensor test, filter selection, preset value, temperature
Interface Remark	Version 33: µC STM32G4

Output Driver	RS422
Connector	PCB Connector, male, JST-GH

Supply Voltage	4.75 – 15 VDC
Power Consumption	≤ 0.3 W
Start-Up Time	< 100 ms
Clock Input	RS422
Clock Frequency	80 kHz - 10 MHz
Reverse Polarity Protection	Yes
Short Circuit Protection	Yes
EMC: Emitted Interference	The kit encoder is a sub-assembly and not to be considered an independent system. Therefore, compliance with CE requirements has to be ensured by the integrator for the overall set-up.
Max. Permissible Electric Speed	12000 1/min
EMC: Noise Immunity	The kit encoder is a sub-assembly and not to be considered an independent system. Therefore, compliance with CE requirements has to be ensured by the integrator for the overall set-up.
MTTF	20 years @ 105 °C

Technology	Magnetic
Resolution Singleturn	17 bit
Resolution Multiturn	16 bit
Accuracy (INL)	±0.0878° (≤12 bit) measured after calibration at room temp.
Code	Binary

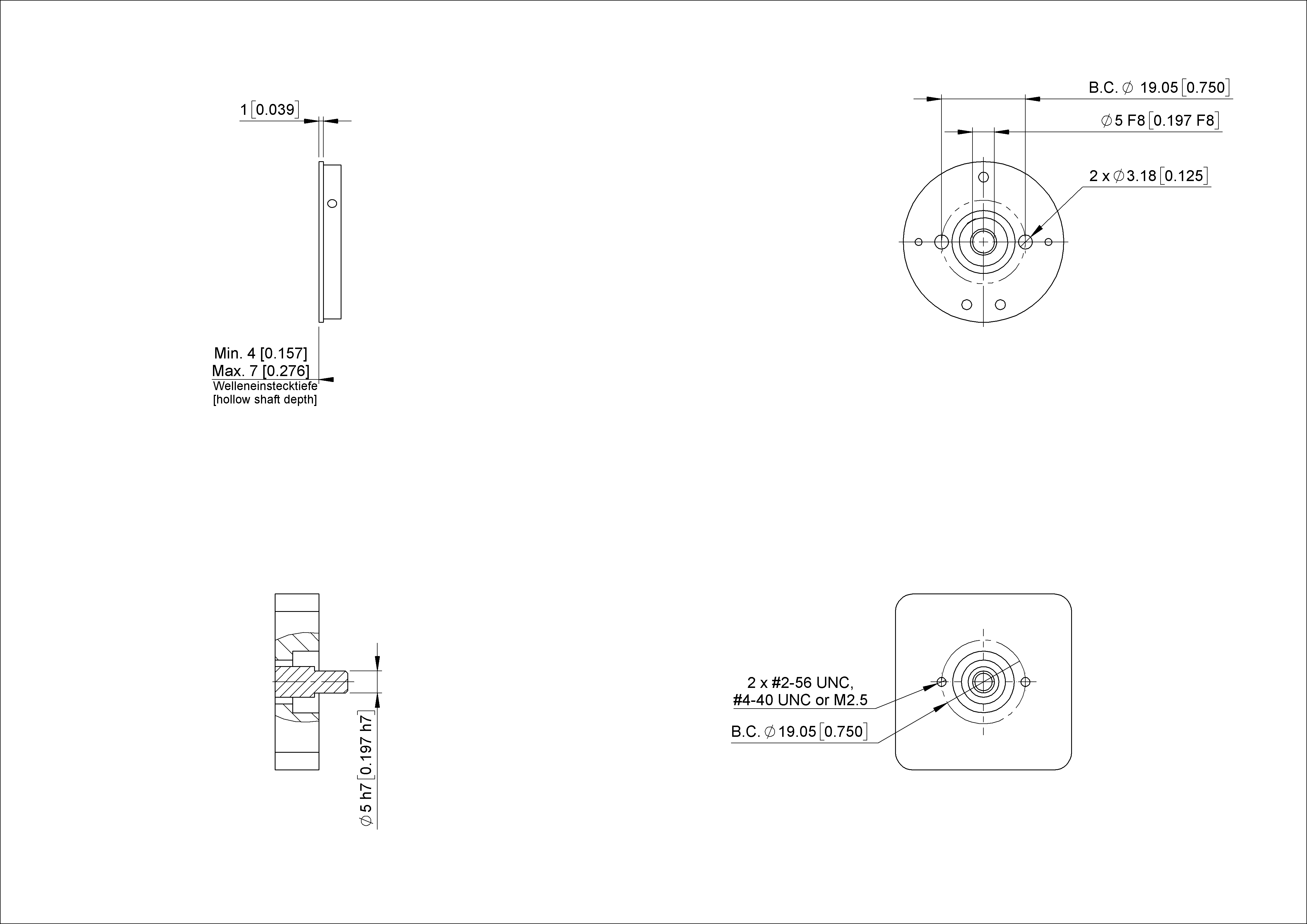

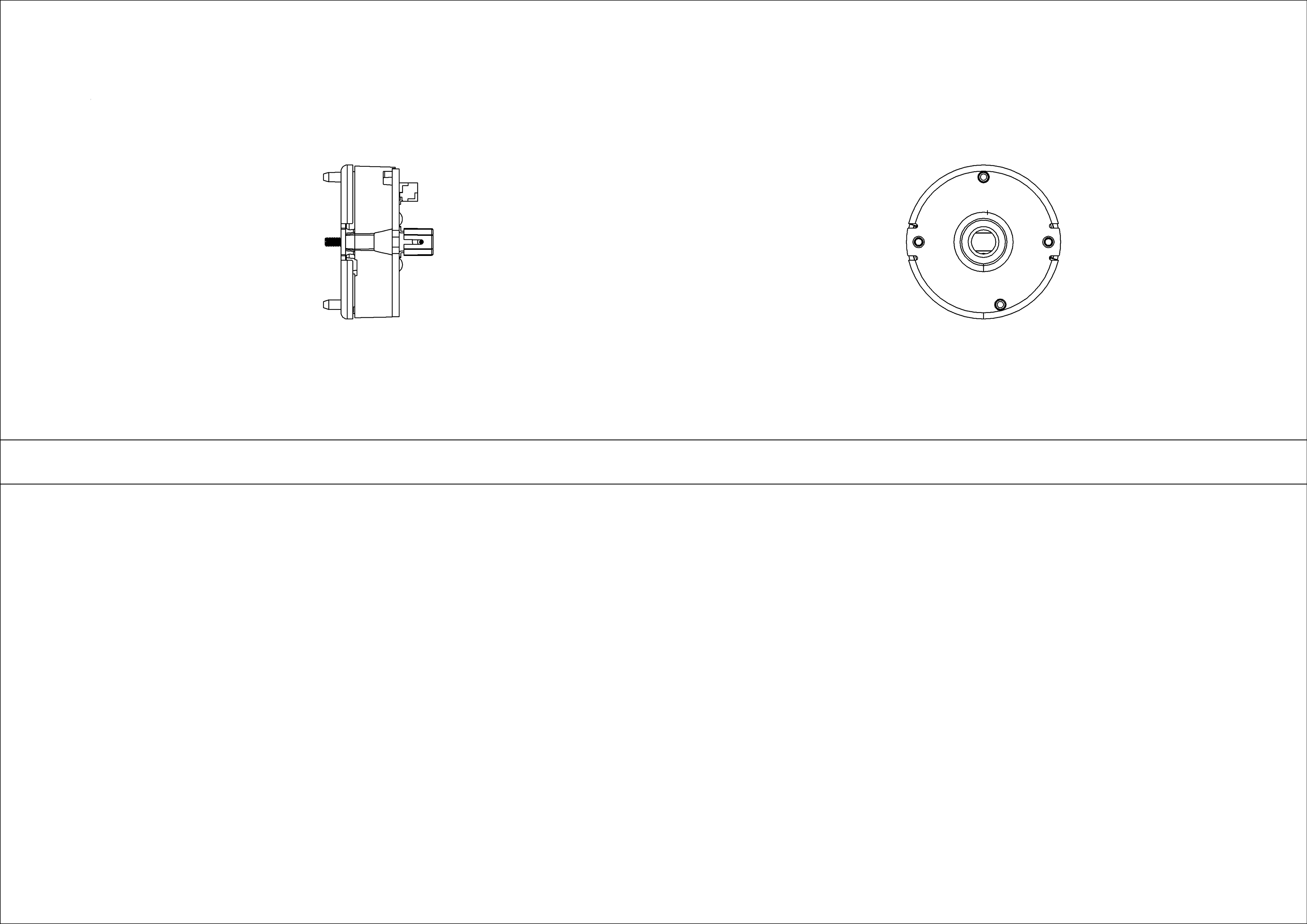

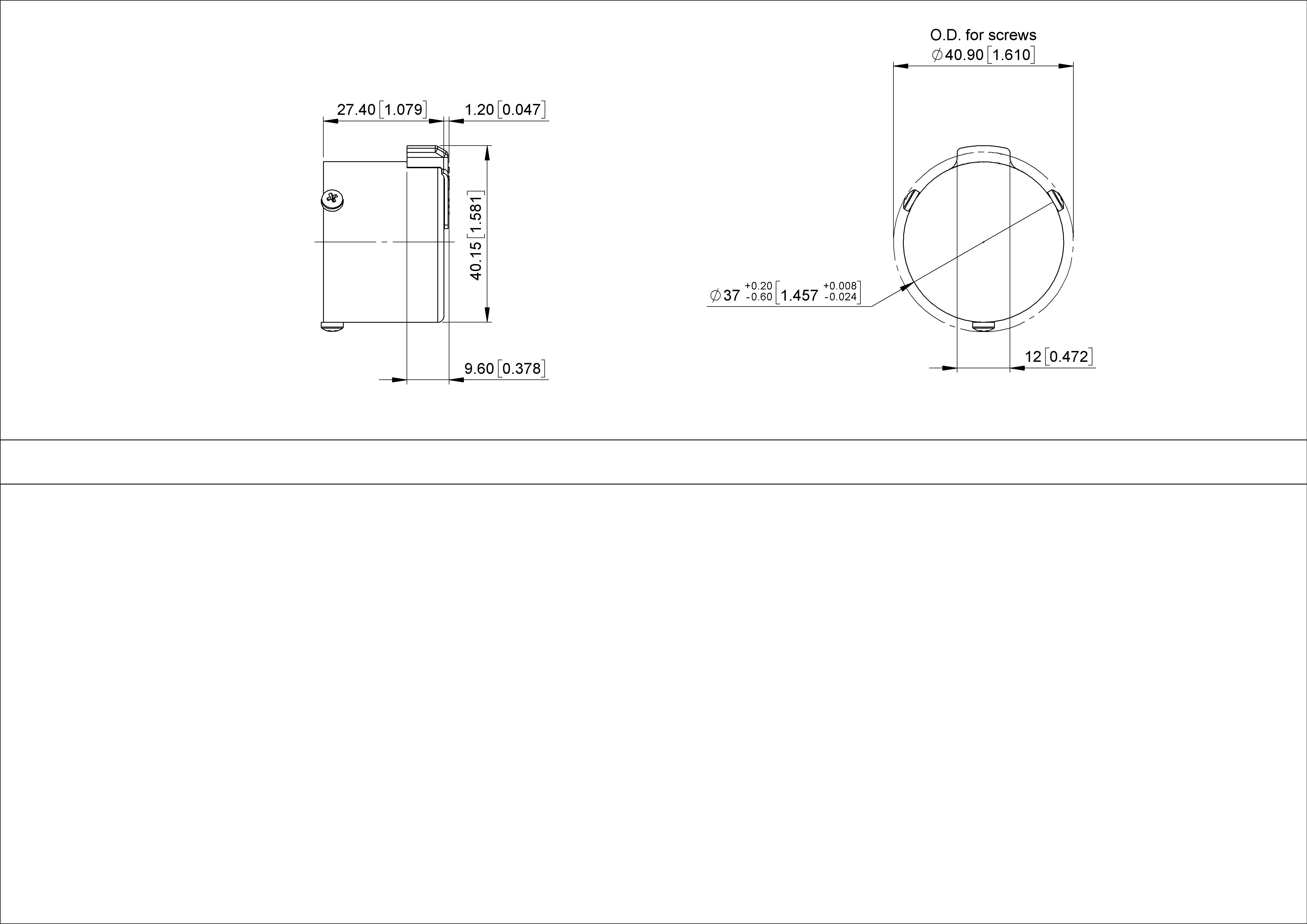

Top Shield	Screwed
Housing Material	Steel
Housing Coating	Zinc Plated

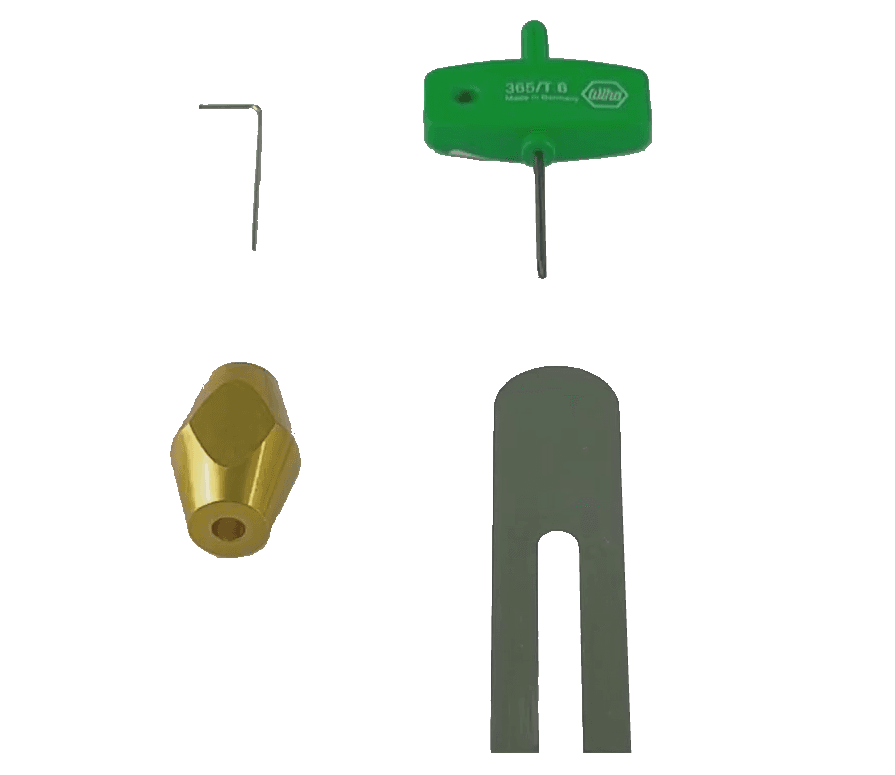

Shaft Type	Hub
Kit Shaft Dimension	5 mm
Shaft Material	Stainless Steel V4A (1.4404, 316L)
Shaft Fastening Options	Shaft Set Screw
Maximum Axial / Radial Misalignment	Static ± 0.3 mm /± 0.5 mm; Dynamic ± 0.1 mm /± 0.2 mm
Weight	21 g (0.05 lb)
Rotor Inertia	≤ 10 gcm² [≤ 0.06 oz-in²]
Shock Resistance	≤ 200 g (half sine 6 ms, EN 60068-2-27)
Permanent Shock Resistance	≤ 20 g (half sine 16 ms, EN 60068-2-29)
Vibration Resistance	≤ 30 g (10 Hz – 1000 Hz, EN 60068-2-6)
