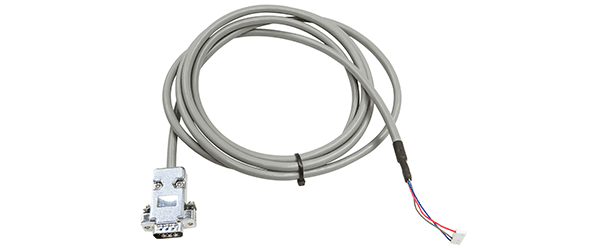

| Intro | Connection Cable for 36mm Kit Encoder |
| Name | 10048949- Kit Control Box- Adapter Cable KxD-BC/Sx 36mm |
| Ordering Code | 10048949-Kit Configuration Tool - Adapter Cable for KxD-BC/S |
| Operating Temperature | -40°C (-40°F) to 85°C (185°F) |
| Outer SheathType | PVC |
| Outer Sheath Color | Gray |
| Shielding | Braided Shielding |
| Material Conductor Insulation | PVC |
| Conductor Cross Section (in sqmm) | 4 x 2 x 0.14 |
| Number of Leads | 8 Leads |
| Twisted Pair | Yes |
| AWG Signal Line | AWG 26 |
| External Cable Diameter | 6 mm ± 0.15mm |
| Smallest Bending Radius - Fixed Installation | 30 mm |
| Smallest Bending Radius - Movable Installation | 48 mm |
| UL Style | UL 2464 |
| Insulation resistance * (per km) | ≥ 10 MΩ*km |
| Conductor Resistance * (per km) | ≤ 148.96 Ω/km |
| Certificates | UL Listed |
| Product Life Cycle | Established |
