| Intro | Connection Cable for configuration and value reading from 36mm Kit Encoder by Master Device MB3U. Master available here: https://www.ichaus.de/product/mb3u-i2c/ |

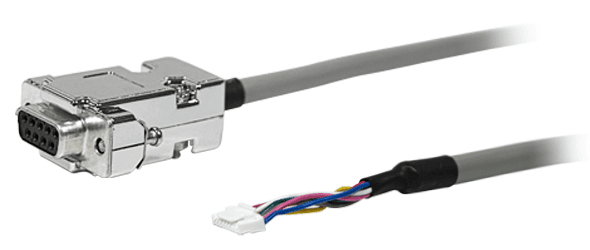

| Name | 10040130- KxD 36mm BiSS Master MB3U Connection Cable |
| Ordering Code | 10040130 - CBL-JST8G-020AB-086Y-DSBS-F09S |
| Operating Temperature | -40°C (-40°F) to 85°C (185°F) |
| Standards/Regulations | JST, GH Connector Housing 8pin |
| Coding | Standard |
| Gender | Female |
| Number of Positions | 08 |
| Standards/Regulations | D-Sub Connector |
| Coding | Standard |
| Gender | Female |
| Number of Positions | 09 |
| Length of Cable | 2.0 m |
| Outer SheathType | PVC |
| Outer Sheath Color | Gray |
| Shielding | Braided Shielding |
| Material Conductor Insulation | PVC |
| Conductor Cross Section (in sqmm) | 4 x 2 x 0.14 |
| Number of Leads | 8 Leads |
| Twisted Pair | Yes |
| AWG Signal Line | AWG 26 |
| External Cable Diameter | 6 mm ± 0.15mm |
| Smallest Bending Radius - Fixed Installation | 30 mm |
| Smallest Bending Radius - Movable Installation | 48 mm |
| UL Style | UL 2464 |
| Insulation resistance * (per km) | ≥ 10 MΩ*km |
| Conductor Resistance * (per km) | ≤ 148.96 Ω/km |
| Certificates | UL Listed |
| Product Life Cycle | Established |
