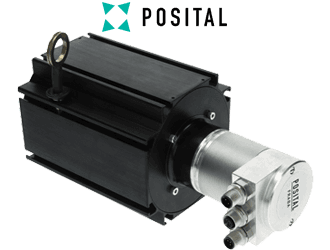

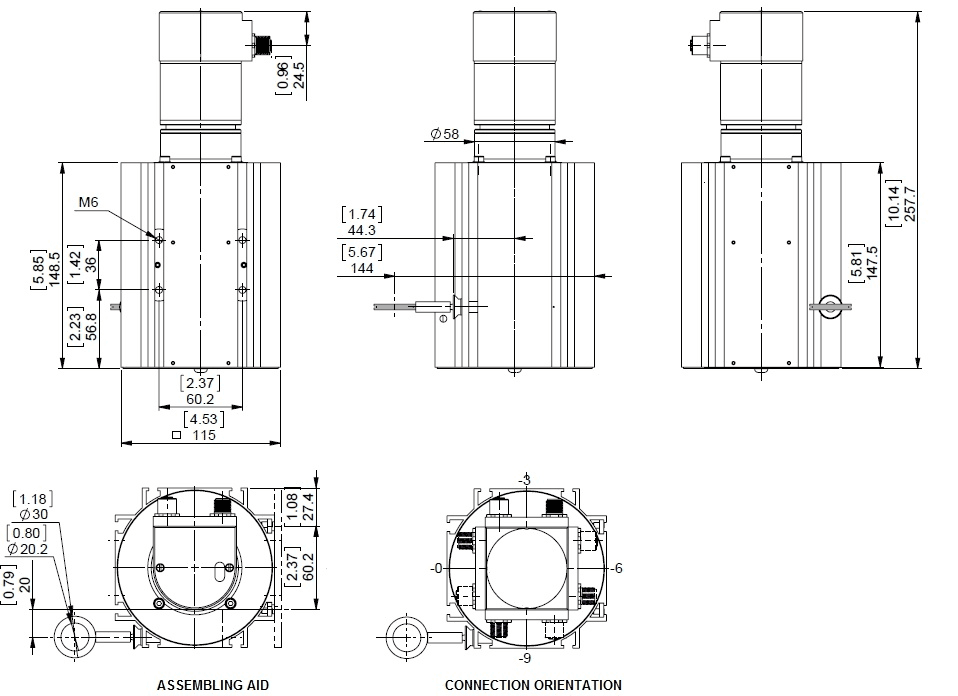

| Supply Voltage | 10 – 30 VDC |
| Power Consumption | ≤ 2.5 W |
| Start-Up Time | < 1 s |
| Min Temperature | 0 °C (32 °F) |
| Max Temperature | +60 °C (+140 °F) |
| Weight | 3255 g (7.18 lb) |
| Protection Class | IP64 / IP65 |
| EMC: Emitted Interference | DIN EN 61000-6-4 |
| EMC: Noise Immunity | DIN EN 61000-6-2 |
| Measuring Length | 10.00 m (32.81') |
| Mean Length per Revolution | 315 mm |
| Wire Material | Coated Polyamide Stainless Steel |
| Wire Diameter | 1.00 mm |
| Housing Material | Steel |
| Draw Wire Housing Material | Aluminum |
| Max. Speed of Wire Displacement | 2.0 m / s |
| Max. Angular Acceleration | 6.0 g |
| Max Extension Force | 21.0 N |
| Min Retraction Force | 8.0 N |
| Actuation Lifetime | 0.5 mio Cycles (Estimated based on ideal conditions) |
| Wire Mounting | Eyelet |
| Max. Wire Exit Angle | ±3° |
| Technology | Optical (≤ 0.02°) |
| Accuracy | ±0.01 % Full Scale Output |
| Repeatability | ±0.001 % Full Scale Output |
| Resolution Singleturn | 13 bit |
| Resolution Multiturn | 12 bit |
| Approx. Linear Resolution | 38.5 µm |
| Code | Binary |
| Interface | Ethernet ModbusTCP |
| Profile | TCP/IP, UDP, Modbus TCP (IEC 61158) |
| Programming Functions | Resolution, preset, complement, transmission mode: polled mode, cyclic mode, change of state |
| Transmission Rate | 10 / 100 Mbit |
| Interface Cycle Time | ≥ 10 ms |
| Output Driver | Ethernet |
| Current Consumption | ≤ 230 mA @ 10 V DC, ≤ 100 mA @ 24 V DC |
| Reverse Polarity Protection | Yes |
| Short Circuit Protection | Yes |
| MTTF | 134 years @ 60 °C |
| Connection Orientation | Radial |
| Connection Orientation (w.r.t Draw Wire) | Radial 0 / Axial |
| Connector 1 | M12, Male, 5 pin, a coded |
| Connector 2 | M12, Female, 4 pin, d coded |
| Product Life Cycle | Discontinued |
| Signal | Connector | Pin Number |
|---|---|---|
| Power Supply | 1 | 1 |
| Power Supply | 1 | 2 |
| GND | 1 | 3 |
| GND | 1 | 4 |
| PE | 1 | 5 |
| Tx+ | 2 | 1 |
| Rx+ | 2 | 2 |
| Tx- | ||
| 2 |
| 3 |
| Rx- | 2 | 4 |
