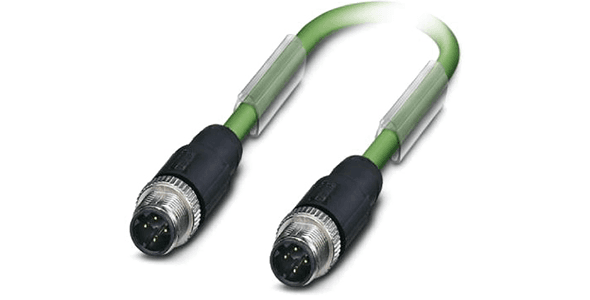

| Name | 10032646- 5m PVC Cable, 4pin, D-Coded, m |
| Ordering Code | 10032646 - CBL-M12S-M04D-050FH-042N-M12S-M04D |
| Weight | 360 g |
| Operating Temperature | -25°C (-13°F) to 70°C (158°F) |
| Standards/Regulations | M12 Connector |
| Coding | D - Standard |
| Gender | Male |
| Number of Positions | 04 |
| Contact Surface Material1 | Ni/Au |
| Housing Material1 | TPU (Plastic) |
| Knurls Material1 | Zinc die-cast, nickel-plated |
| Contact Connection Method1 | N.A |
| Degree of Protection1 | IP67 |
| Fixing Torque1 | 0.4 Nm (M12 Connector) |
| Standards/Regulations | M12 Connector |
| Coding | D - Standard |
| Gender | Male |
| Number of Positions | 04 |
| Contact Surface Material | TPU (Plastic) |
| Contact Connection Method | Ni/Au |
| Housing Material | Zinc die-cast, nickel-plated |
| Degree of Protection | IP67 |
| Fixing Torque | 0.4 Nm (M12 Connector) |
| Length of Cable | 5.0 m |
| Outer SheathType | PVC |
| Outer Sheath Color | Green RAL 6018 |
| Shielding | Braided + Foil Shielding |
| Material Conductor Insulation | PE |
| Conductor Cross Section (in sqmm) | 4 x 0.34 |
| Number of Leads | 4 Leads |
| Twisted Pair | No |
| AWG Signal Line | AWG 22 |
| External Cable Diameter | 6.5 mm ± 0.2mm |
| Smallest Bending Radius - Fixed Installation | 20.1 mm |
| Smallest Bending Radius - Movable Installation | 46.9 mm |
| UL Style | UL 21694 |
| Insulation resistance * (per km) | ≥ 500 MΩ*km |
| Conductor Resistance * (per km) | ≤ 120 Ω/km |
| Performance Category | CAT 5 |
| Product Life Cycle | Established |
