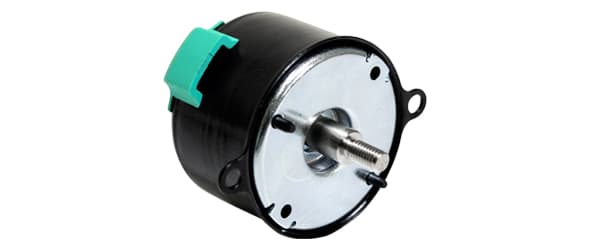

| 接口 | BiSS Line 4 wire |
| 手动功能 | Preset via cable or connector |
| Profil | BiSS BP3 Standard Encoder Profile |
| 接口周期时间 | ≥ 62.5 µs |
| 诊断 | Error and Warning Bits, Register Values |
| 编程功能 | Preset, Wiegand Sensor Test, Electronic Datasheet (motor + encoder), OEM Data Storage |
| 传输速率 | ≤12 Mbaud |
| Interface Remark | 二进制码 |
| 输出驱动器 | RS485线路驱动器 |
| 接口 | PCB Connector, male, 4+2 pin JST |
| 电源电压 | 4.75 – 12.5 VDC |
| 功耗 | ≤ 0.3 W |
| 启动时间 | < 100 ms |
| 反极性保护 | 是 |
| 短路保护 | 是 |
| EMC:发射干扰 | The kit encoder is a sub-assembly and not to be considered an independent system. Therefore, compliance with CE requirements has to be ensured by the integrator for the overall set-up. |
| 允许最高转速 | 12000 1/min |
| EMC:抗干扰 | The kit encoder is a sub-assembly and not to be considered an independent system. Therefore, compliance with CE requirements has to be ensured by the integrator for the overall set-up. |
| MTTF | 20 years @ 105 °C |
| 技术 | 磁性 |
| 单圈分辨率 | 17 bit |
| 分辨率 多圈 | 24 bit |
| 精度 (INL) | ±0.0878° (≤12 bit) measured after calibration at room temp. |
| 认证 认证/寿命 码制 码 | 二进制码 |
| 外壳防护等级 (外壳) | IP30 |
| Min Temperature | - 40 °C (- 40 °F) |
| Max Temperature | +105 °C (221 °F) |
| 顶部屏蔽 | 螺丝紧固 |
| 外壳材料 | 钢 |
| 外壳涂层 | 阴极防腐蚀防护（> 720小时耐盐雾测试) |
| 轴类型 | 实心轴 |
| 轴的材料 | 不锈钢 V4A (1.4404, 316L) |
| 轴紧固选项 | 轴上外螺纹 |
| 最大轴向/径向 错位 | ± 0.3 mm / ± 0.1 mm |
| 重量 | 19 g (0.04 lb) |
| 转子转动惯量 | ≤ 10 gcm² [≤ 0.06 oz-in²] |
| 耐冲击性 | ≤ 200 g (half sine 6 ms, EN 60068-2-27) |
| 持久的抗冲击性 | ≤ 20 g (half sine 16 ms, EN 60068-2-29) |
| 耐振动性 | ≤ 30 g (10 Hz – 1000 Hz, EN 60068-2-6) |
| Approval | No CE |
| 产品寿命周期信息 | 原型 |

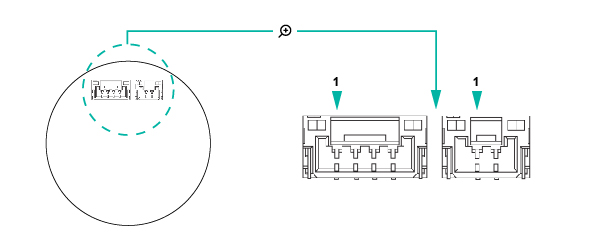

| 信号 | 连接器 | 引脚编号 |
|---|---|---|
| GND | 1 | 1 |
| Data- | 1 | 2 |
| Data+ | 1 | 3 |
| Power Supply | 1 | 4 |
| Rext Terminal 1 | 2 | 1 |
| Rext Terminal 2 | 2 | 2 |
