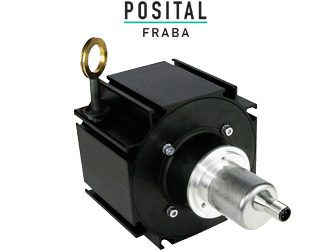

| Supply Voltage | 18 - 32 V DC |
| Start-Up Time | < 1 s |
| Min Temperature | -20 °C (-4 °F) |
| Max Temperature | +80 °C (+176 °F) |
| Weight | 1430 g (3.15 lb) |
| Protection Class | IP64 / IP65 |
| EMC: Emitted Interference | DIN EN 61000-6-4 |
| EMC: Noise Immunity | DIN EN 61000-6-2 |
| Measuring Length | 5.00 m (16.40') |
| Mean Length per Revolution | 315 mm |
| Wire Material | Coated Polyamide Stainless Steel |
| Wire Diameter | 1.00 mm |
| Housing Material | Steel |
| Draw Wire Housing Material | Aluminum |
| Max. Speed of Wire Displacement | 2.0 m / s |
| Max. Angular Acceleration | 5.0 g |
| Max Extension Force | 16.0 N |
| Min Retraction Force | 4.0 N |
| Actuation Lifetime | 0.5 mio Cycles (Estimated based on ideal conditions) |
| Wire Mounting | Eyelet |
| Max. Wire Exit Angle | ±3° |
| Technology | Magnetic (≤ 0.09°) |
| Accuracy | ±0.02 % Full Scale Output |
| Repeatability | ±0.002 % Full Scale Output |
| Resolution Singleturn | 16 bit |
| Resolution Multiturn | 15 bit |
| Approx. Linear Resolution | 4.8 µm (theoretical), limited by mechanics |
| Code | Binary |
| Interface | IO-Link Specification V1.1 |
| Profile | Smart Sensor Profile 2nd Edition |
| Diagnostics | Device Status, Internal Temperature, Operating Hours Counter, Movement Hours Counter, Power Cycles Counter |
| Programming Functions | Singleturn and Total Resolution, Velocity Filter, Preset Value, HW and SW CAM, Counting Direction, Pin 2 I/O-Configuration |
| Transmission Rate | COM3 230,4 kBaud |
| Interface Cycle Time | 2.3 ms |
| Output Driver | IEC 61131-9 |
| Reverse Polarity Protection | Yes |
| Short Circuit Protection | Yes |
| MTTF | 283 years @40 °C |
| Connection Orientation | Axial |
| Connection Orientation (w.r.t Draw Wire) | Radial 0 / Axial |
| Connector | M12, Male, 5 pin, a coded, with LED |
| Product Life Cycle | New |
| Signal | Connector | Pin Number |
|---|---|---|
| Power Supply | 1 | 1 |
| GND | 1 | 3 |
| Digital Input / Output | 1 | 2 |
| IO-Link | 1 | 4 |
| Not Connected | 1 | 5 |
| LED Green | 1 | LED |
| LED Yellow | 1 | LED |
| LED Common | 1 | LED |
