| Supply Voltage | 4.75 – 30 VDC |
| Power Consumption | ≤ 1.0 W |
| Start-Up Time | < 1 s |
| Min Temperature | -30 °C (-22 °F) |
| Max Temperature | +70 °C (+158 °F) |
| Weight | 1315 g (2.90 lb) |
| Protection Class | IP64 / IP65 |
| EMC: Emitted Interference | DIN EN 61000-6-4 |
| EMC: Noise Immunity | DIN EN 61000-6-2 |
| Measuring Length | 2.00 m (6.56') |
| Mean Length per Revolution | 200 mm |
| Wire Material | Stainless Steel |
| Wire Diameter | 1.35 mm |
| Housing Material | Steel |
| Draw Wire Housing Material | Anodized Aluminium |
| Max. Speed of Wire Displacement | 8.0 m / s |
| Max Extension Force | 15.0 N |
| Min Retraction Force | 5.0 N |
| Actuation Lifetime | 1.0 mio Cycles (Estimated based on ideal conditions) |
| Wire Mounting | Eyelet |
| Max. Wire Exit Angle | ±3° |
| Technology | Magnetic (≤ 0.09°) |
| Accuracy | ± 0.10 % Full Scale Output |
| Repeatability | ±0.05 % Full Scale Output |
| Resolution Singleturn | Incremental |
| Approx. Linear Resolution | 0.1 mm/pulse (Default) |
| Pulses per Revolution | 02000 |
| Duty Cycle | 180° ± 27° (Speed > 100RPM) |
| Phase Angle | 90° ± 14° (Speed > 100RPM) |
| Interface | Programmable Incremental |
| Programming Functions | PPR (1-16384), Output, Counting Direction |
| Configuration Tool | UBIFAST Configuration Tool (Version ≥ 1.6.3) |
| Programmable Output | Push-Pull (HTL) or RS422 (TTL) |
| Output Driver | RS 422 (TTL) |
| Output Voltage High Level Push-Pull (HTL) | > 4 V @ 4.75-9 V Supply Voltage > V-3 V @ 9-30 V Supply Voltage |
| Output Voltage Low Level Push-Pull (HTL) | < 0.5 V |
| Output Voltage High Level RS422 (TTL) | > 4 V |
| Output Voltage Low Level RS422 (TTL) | < 0.5 V |
| Current Consumption | ≤140mA @ 5V DC, ≤70mA @ 10V DC, ≤40mA @ 24V DC |
| Min. Load Resistance | 120 Ω |
| Reverse Polarity Protection | Yes |
| Short Circuit Protection | Yes |
| MTTF | 280 years @ 40 °C |

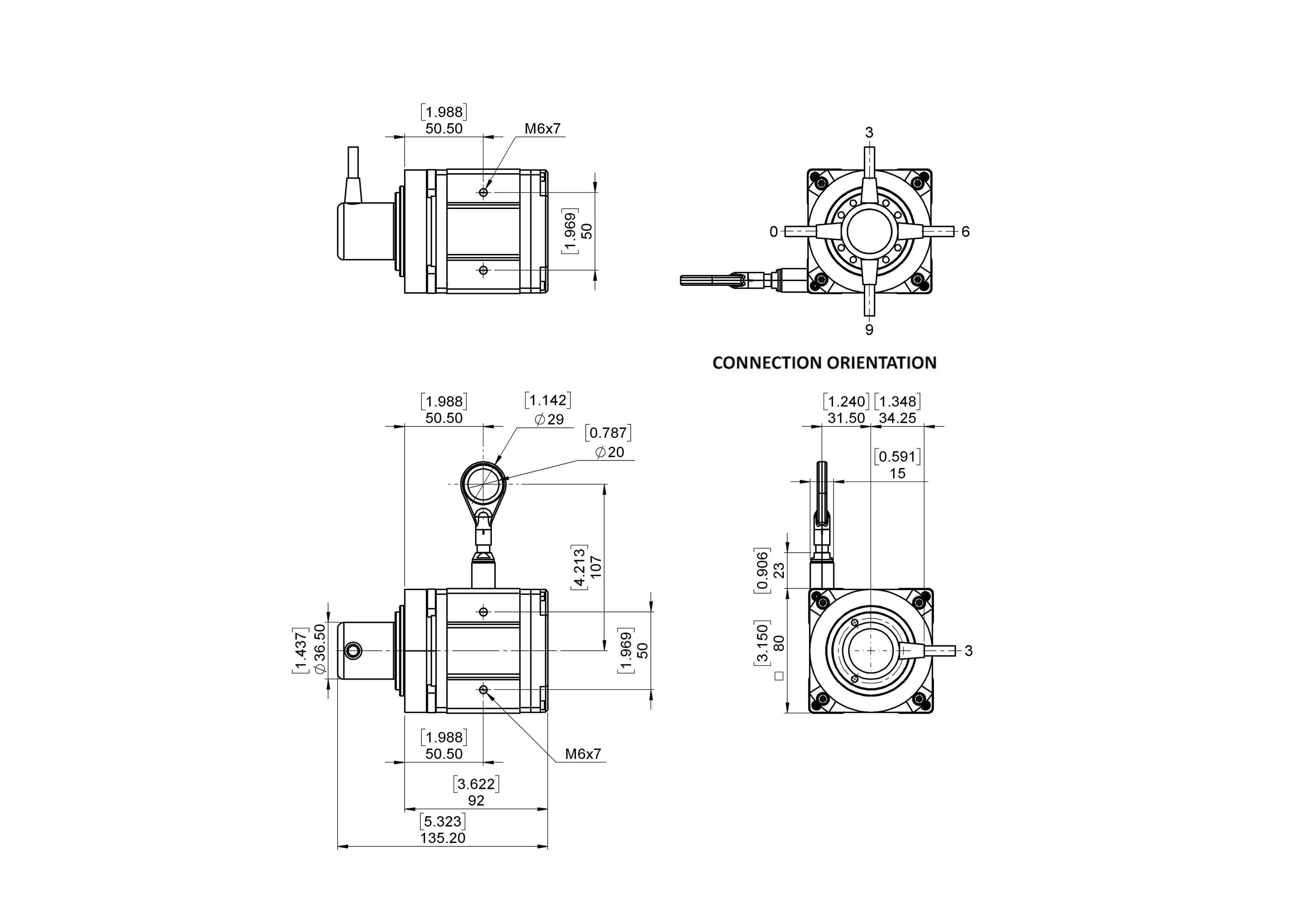

| Connection Orientation | Radial |
| Connection Orientation (w.r.t Draw Wire) | Radial 3 |
| Connector | Cable 2 m |
| Cable Length | 2 m [79"] |
| Wire Cross Section | 0.14 mm² / AWG 26 |
| Material / Type | PVC |
| Cable Diameter | 6 mm (0.24 in) |
| Minimum Bend Radius | 30 mm (1.18 in) fixed, 60 mm (2.36 in) flexing |
| Product Life Cycle | Exiting |
| Signal | Color |
|---|---|
| A | Green |
| /A | Yellow |
| B | Gray |
| /B | Pink |
| Z | Blue |
| /Z | Red |
| Power Supply | Brown |
| GND | White |
| Shielding | Shield |
