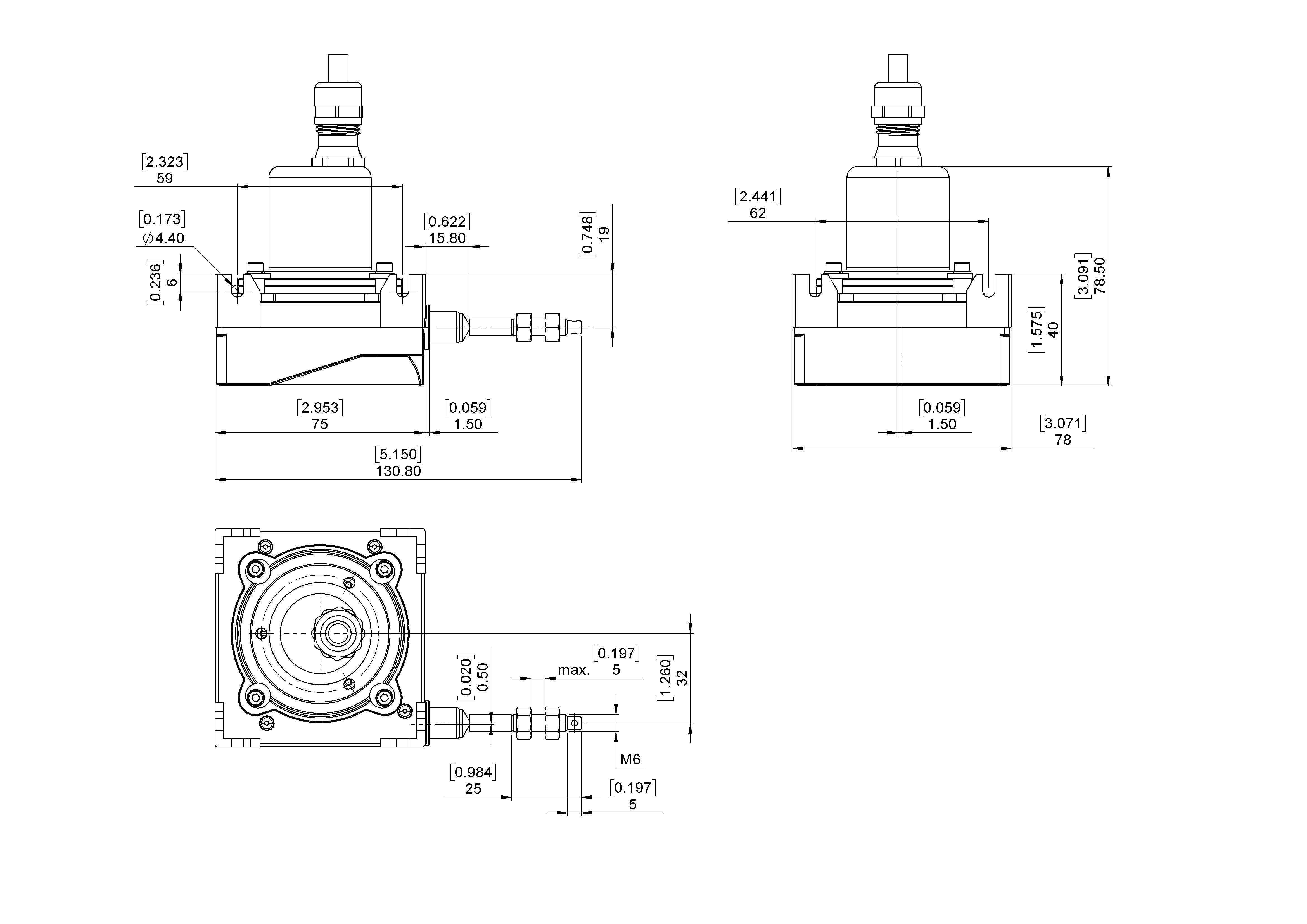

| Supply Voltage | 9 – 30 VDC |
| Power Consumption | ≤ 1.2 W |
| Weight | 680 g (1.50 lb) |
| Protection Class | IP64 / IP65 |
| EMC: Emitted Interference | DIN EN 61000-6-4 |
| EMC: Noise Immunity | DIN EN 61000-6-2 |
| Max Temperature | +80 °C (+176 °F) |
| Min Temperature | -30 °C fixed (-22 °F), -5 °C flexible (+23 °F) |
| Measuring Length | 3.00 m (9.84') |
| Length per Revolution | 200 mm |
| Wire Material | Plastic Coated Stainless Steel |
| Wire Diameter | 0.61 mm |
| Housing Material | Steel |
| Draw Wire Housing Material | Zinc Die-cast |
| Max. Speed of Wire Displacement | 0.8 m / s |
| Max. Angular Acceleration | 1.0 g |
| Max Extension Force | 3.0 N |
| Min Retraction Force | 2.5 N |
| Actuation Lifetime | Not Available |
| Wire Mounting | M6 Thread |
| Max. Wire Exit Angle | ±0° |
| Technology | Magnetic (≤ 0.09°) |
| Accuracy | ±0.012 % Full Scale Output |
| Repeatability | ±0.005 % Full Scale Output |
| Resolution Singleturn | 12 bit |
| Resolution Multiturn | 12 bit |
| Approx. Linear Resolution | 48.8 µm |
| Code | Binary |
| Interface | CANopen |
| Profile | DS-406 |
| Programming Functions | Resolution, preset, 2 limit switches, 8 CAMS, baud rate, CAN-Identifier, bootloader, transmission modes: polled, cyclic, sync |
| Transmission Rate | min. 20 kBaud, max. 1 MBaud |
| Interface Cycle Time | ≥ 1 ms |
| Output Driver | Transceiver (ISO 11898), Galvanically Isolated by Opto-Couplers |
| Current Consumption | ≤ 70 mA @ 10 V DC, ≤ 50 mA @ 24 V DC |
| Reverse Polarity Protection | Yes |
| Short Circuit Protection | Yes |
| MTTF | 240 years @ 40 °C |
| Connection Orientation | Axial |
| Connection Orientation (w.r.t Draw Wire) | Radial 0 / Axial |
| Cable Length | 1 m [39"] |
| Wire Cross Section | 0.14 mm² / AWG 26 |
| Material / Type | PVC |
| Cable Diameter | 6 mm (0.24 in) |
| Minimum Bend Radius | 46 mm (1.81") fixed, 61 mm (2.4") flexing |
| Connection Type | Cable / Connector |
| Product Life Cycle | Established |
| Signal | Color |
|---|---|
| Power Supply | Red |
| GND | Yellow |
| CAN High | White |
| CAN Low | Brown |
| CAN GND | Green |
| ? | ? |
| ? | ? |
| ? | ? |
