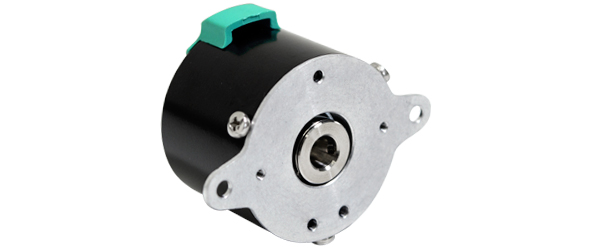

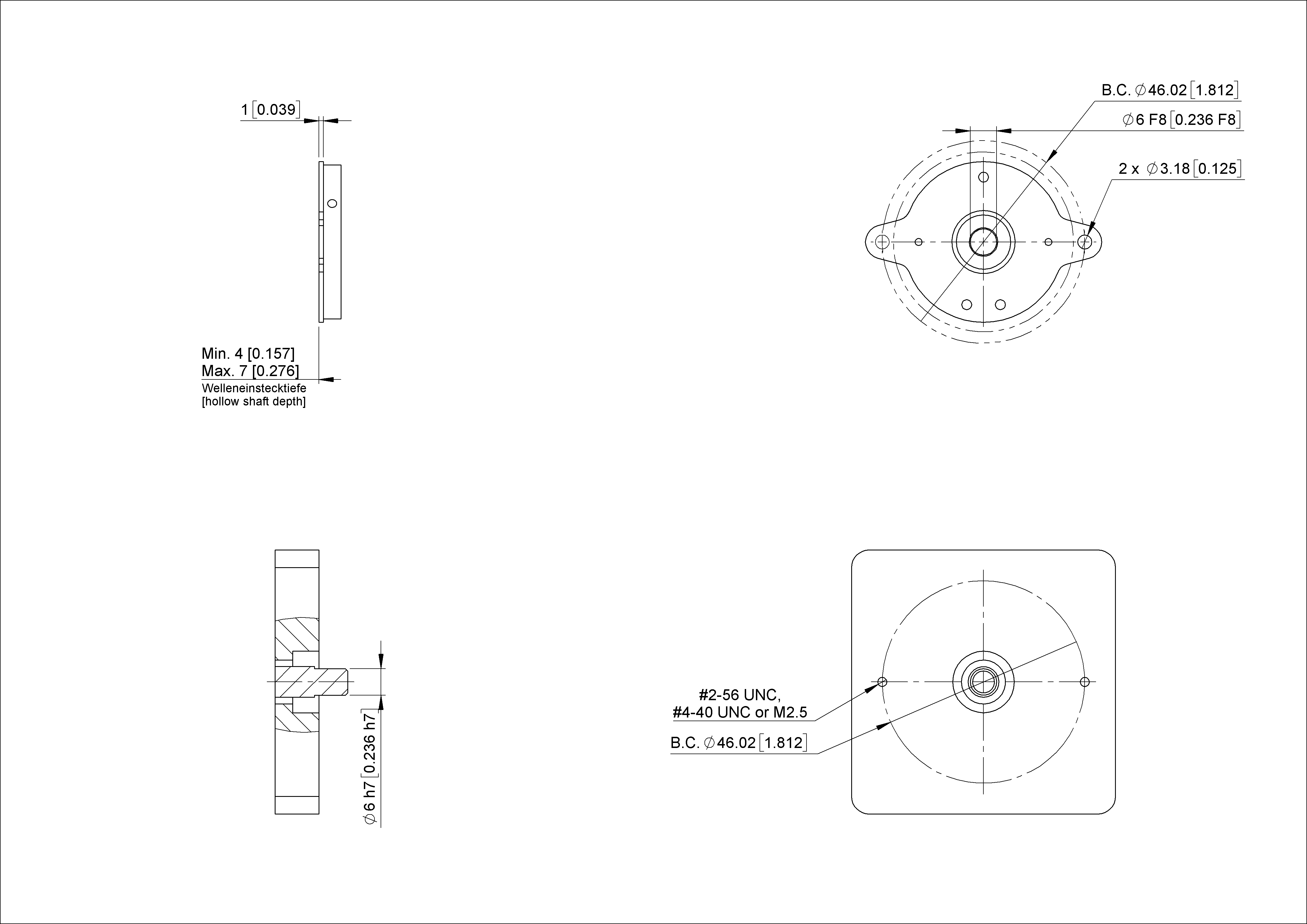

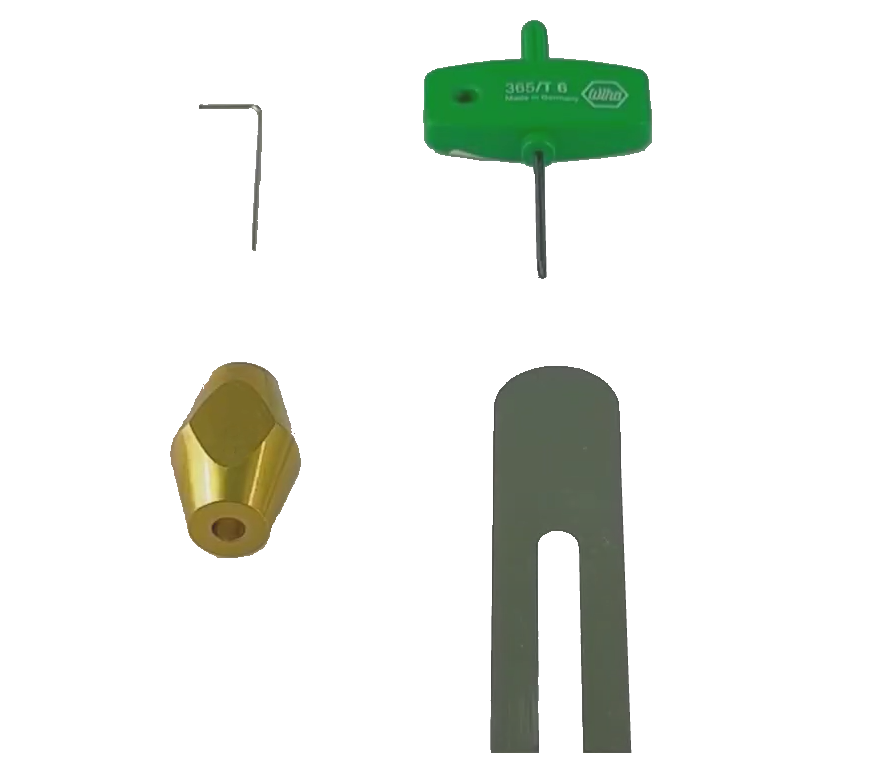

| Interface | BiSS Line 4 wire |
| Manual Functions | Preset via cable or connector |
| Profile | BiSS BP3 Standard Encoder Profile |
| Interface Cycle Time | ≥ 62.5 µs |
| Diagnostics | Error and Warning Bits, Register Values |
| Programming Functions | Preset, Wiegand Sensor Test, Electronic Datasheet (motor + encoder), OEM Data Storage |
| Transmission Rate | ≤12 Mbaud |
| Interface Remark | Binary |
| Output Driver | Line Driver RS485 |
| Connector | PCB Connector, male, 4+2 pin JST |
| Supply Voltage | 4.75 – 12.5 VDC |
| Power Consumption | ≤ 0.3 W |
| Start-Up Time | < 100 ms |
| Reverse Polarity Protection | Yes |
| Short Circuit Protection | Yes |
| EMC: Emitted Interference | DIN EN 61000-6-4, customer shall verify in complete system |
| Max. Permissable Electric Speed | 12000 1/min |
| EMC: Noise Immunity | The kit encoder is a sub-assembly and not to be considered an independent system. Therefore, compliance with CE requirements has to be ensured by the integrator for the overall set-up. |
| MTTF | 20 years @ 105 °C |
| Technology | Magnetic |
| Resolution Singleturn | 17 bit |
| Resolution Multiturn | 24 bit |
| Accuracy (INL) | ±0.0878° (≤12 bit) measured after calibration at room temp. |
| Code | Binary |
| Protection Class (Housing) | IP30 |
| Min Temperature | -40 °C (-40 °F) |
| Max Temperature | +105 °C (221 °F) |
| Top Shield | Screwed |
| Housing Material | Steel |
| Housing Coating | Zinc Plated |
| Shaft Type | Hub |
| Shaft Material | Stainless Steel V4A (1.4404, 316L) |
| Shaft Fastening Options | Shaft Set Screw |
| Maximum Axial / Radial Misalignment | Static ± 0.3 mm /± 0.5 mm; Dynamic ± 0.1 mm /± 0.2 mm |
| Weight | 21 g (0.05 lb) |
| Rotor Inertia | ≤ 10 gcm² [≤ 0.06 oz-in²] |
| Shock Resistance | ≤ 200 g (half sine 6 ms, EN 60068-2-27) |
| Permanent Shock Resistance | ≤ 20 g (half sine 16 ms, EN 60068-2-29) |
| Vibration Resistance | ≤ 30 g (10 Hz – 1000 Hz, EN 60068-2-6) |
| Approval | No CE |
| Product Life Cycle | Prototype |
| Signal | Connector | Pin Number |
|---|---|---|
| GND | 1 | 1 |
| Data- | 1 | 2 |
| Data+ | 1 | 3 |
| Power Supply | 1 | 4 |
| Rext Terminal 1 | 2 | 1 |
| Rext Terminal 2 | 2 | 2 |
