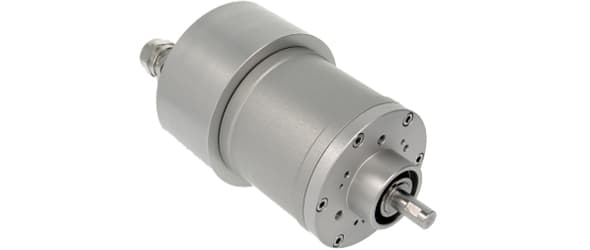

| Interface | Programmable Incremental |
| Programming Functions | PPR (1-16384), Output, Counting Direction |
| Programmable Output | Push-Pull (HTL) or RS422 (TTL) |
| Configuration Tool | UBIFAST Configuration Tool (Version ≥ 1.6.3) |
| Output Driver | Push-Pull (HTL) |
| Output Voltage High Level Push-Pull (HTL) | > 4 V @ 4.75-9 V Supply Voltage > V-3 V @ 9-30 V Supply Voltage |
| Output Voltage Low Level Push-Pull (HTL) | < 0.5 V |
| Output Voltage High Level RS422 (TTL) | > 4 V |
| Output Voltage Low Level RS422 (TTL) | < 0.5 V |
| Maximum Frequency Response | 1 MHz |
| Maximum Switching Current | 50 mA per Channel |
| Supply Voltage | 4.75 – 30 VDC |
| Current Consumption | ≤140mA @ 5V DC, ≤70mA @ 10V DC, ≤40mA @ 24V DC |
| Power Consumption | ≤ 1.0 W |
| Start-Up Time | < 1 s |
| Min. Load Resistance | 120 Ω |
| Reverse Polarity Protection | Yes |
| Short Circuit Protection | Yes |
| EMC: Emitted Interference | DIN EN 61000-6-4 |
| EMC: Noise Immunity | DIN EN 61000-6-2 |
| Technology | Magnetic |
| Accuracy (INL) | ±0.0878° (≤ 12 bit) |
| Sense Signal (Default) | Clockwise shaft movement (front view on shaft) |
| Duty Cycle | 180° ± 27° (Speed > 100RPM) |
| Phase Angle | 90° ± 14° (Speed > 100RPM) |
| Protection Class (Shaft) | IP66/IP67 |
| Protection Class (Housing) | IP66/IP67 |
| Min Temperature | -40 °C (-40 °F) |
| Max Temperature | +70 °C (+158 °F) |
| Humidity | 98% RH, no condensation |
| Connection Cap Material | Stainless Steel V4A (1.4404; 316 L) |
| Housing Material | Stainless Steel V4A (1.4404, 316 L) |
| Housing Coating | No Coating |
| Flange Type | Clamp, ø 78 mm, ATEX |
| Flange Material | Stainless steel V4A (1.4404, 316 L) |
| Shaft Type | Solid, Single Flat, Length = 20 mm |
| Shaft Diameter | ø 10 mm (0.39") |
| Max. Shaft Load | Axial 60 N, Radial 80 N |
| Rotor Inertia | ≤ 35 gcm² [≤ 0.2 oz-in²] |
| Friction Torque | ≤ 3 Ncm @ 20 °C (4.2 oz-in @ 68 °F) |
| Max. Permissible Mechanical Speed | ≤ 3000 1/min |
| Shock Resistance | ≤ 100 g (half sine 11 ms, EN 60068-2-27) |
| Vibration Resistance | ≤ 10 g (10 Hz – 2000 Hz, EN 60068-2-6) |
| Length | 150 mm (5.91") |
| Weight | 2820 g (6.22 lb) |
| Connection Orientation | Axial |
| Connection Type | 2 x Blind Plug, Axial |
| Approval | CE + ATEX Zone 1 & 21 (Oil+Gas) |
| Product Life Cycle | New |
| Signal | Pin Number |
|---|---|
| GND | 1 |
| Power Supply | 2 |
| A | 3 |
| /A | 4 |
| B | 5 |
| /B | 6 |
| Z | 7 |
| /Z | 8 |
