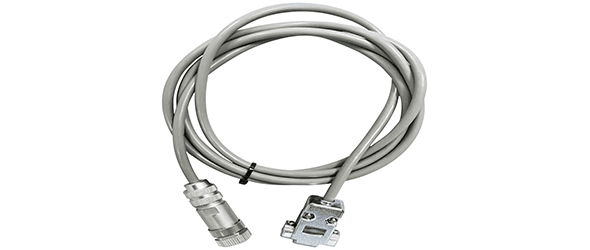

| Name | 10045054- KxD 36mm BiSS Master MB3U Connection Cable (PRQ) |
| Ordering Code | 10045054 - CBL-M12S-F08A-020AB-086Y-DSBS-F09S |
| Weight | 50 g |
| Operating Temperature | -40 °C / -40° F to 85 °C / 185° F |
| Operating Temperature | -40°C (-40°F) to 85°C (185°F) |
| Standards/Regulations | M12 Connector |
| Coding | A - Standard |
| Gender | Female |
| Number of Positions | 08 |
| Contact Surface Material1 | Au |
| Housing Material1 | Zinc Die-cast, Nickel Plated |
| Knurls Material1 | Zinc die-cast, nickel-plated |
| Contact Connection Method1 | Screw Connection |
| Degree of Protection1 | IP67 |
| Fixing Torque1 | 0.4 Nm (M12 Connector) |
| Cable Diameter Range1 | 6 - 8 mm |
| Conductor AWG Range1 | 24 - 20 |
| Cross Section Range1 | 0.25 - 0.50 mm^2 |
| Outer SheathType | PVC |
| Outer Sheath Color | Gray |
| Shielding | Braided Shielding |
| Material Conductor Insulation | PVC |
| Conductor Cross Section (in sqmm) | 4 x 2 x 0.14 |
| Number of Leads | 8 Leads |
| Twisted Pair | Yes |
| AWG Signal Line | AWG 26 |
| External Cable Diameter | 6 mm ± 0.15mm |
| Smallest Bending Radius - Fixed Installation | 30 mm |
| Smallest Bending Radius - Movable Installation | 48 mm |
| UL Style | UL 2464 |
| Insulation resistance * (per km) | ≥ 10 MΩ*km |
| Conductor Resistance * (per km) | ≤ 148.96 Ω/km |
| Certificates | UL Listed |
| Product Life Cycle | Established |
