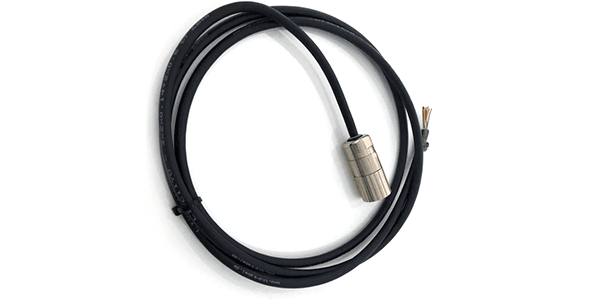

| Name | 10012753 - 2m PVC Cable, 16pin, f |
| Ordering Code | 10012753 - CBL-M23S-F16L-020AB-166Y-001 |
| Weight | 100 g |
| Weight | 350 g |
| Operating Temperature | -20 °C / -4° F to 130 °C / 266° F |
| Operating Temperature | -5°C (23°F) to 70°C (158°F) |
| Standards/Regulations | M23 Connector |
| Coding | Left Counting |
| Gender | Female |
| Number of Positions | 16 |
| Contact Surface Material1 | Brass (Gold Plated) |
| Housing Material1 | Zinc Die-cast, Nickel Plated |
| Knurls Material1 | Zinc die-cast, nickel-plated |
| Contact Connection Method1 | Solder Connection |
| Degree of Protection1 | IP67 |
| Cable Diameter Range1 | 4.5 - 8.5 mm |
| Cross Section Range1 | 1.50 mm2 |
| Standards/Regulations | Open Wire End |
| Length of Cable | 2.0 m |
| Outer SheathType | PVC |
| Outer Sheath Color | Gray RAL 7001 |
| Shielding | Braided Shielding |
| Material Conductor Insulation | PVC |
| Conductor Cross Section (in sqmm) | 8 x 2 x 0.14 |
| Number of Leads | 16 Leads |
| Twisted Pair | Yes |
| AWG Signal Line | AWG 26 |
| External Cable Diameter | 7.70mm ± 0.4mm |
| Smallest Bending Radius - Fixed Installation | 60 mm |
| Smallest Bending Radius - Movable Installation | 77 mm |
| UL Style | N.A |
| Insulation resistance * (per km) | ≥ 20 MΩ*km |
| Conductor Resistance * (per km) | ≤ 135 Ω/km |
| Product Life Cycle | Established |
