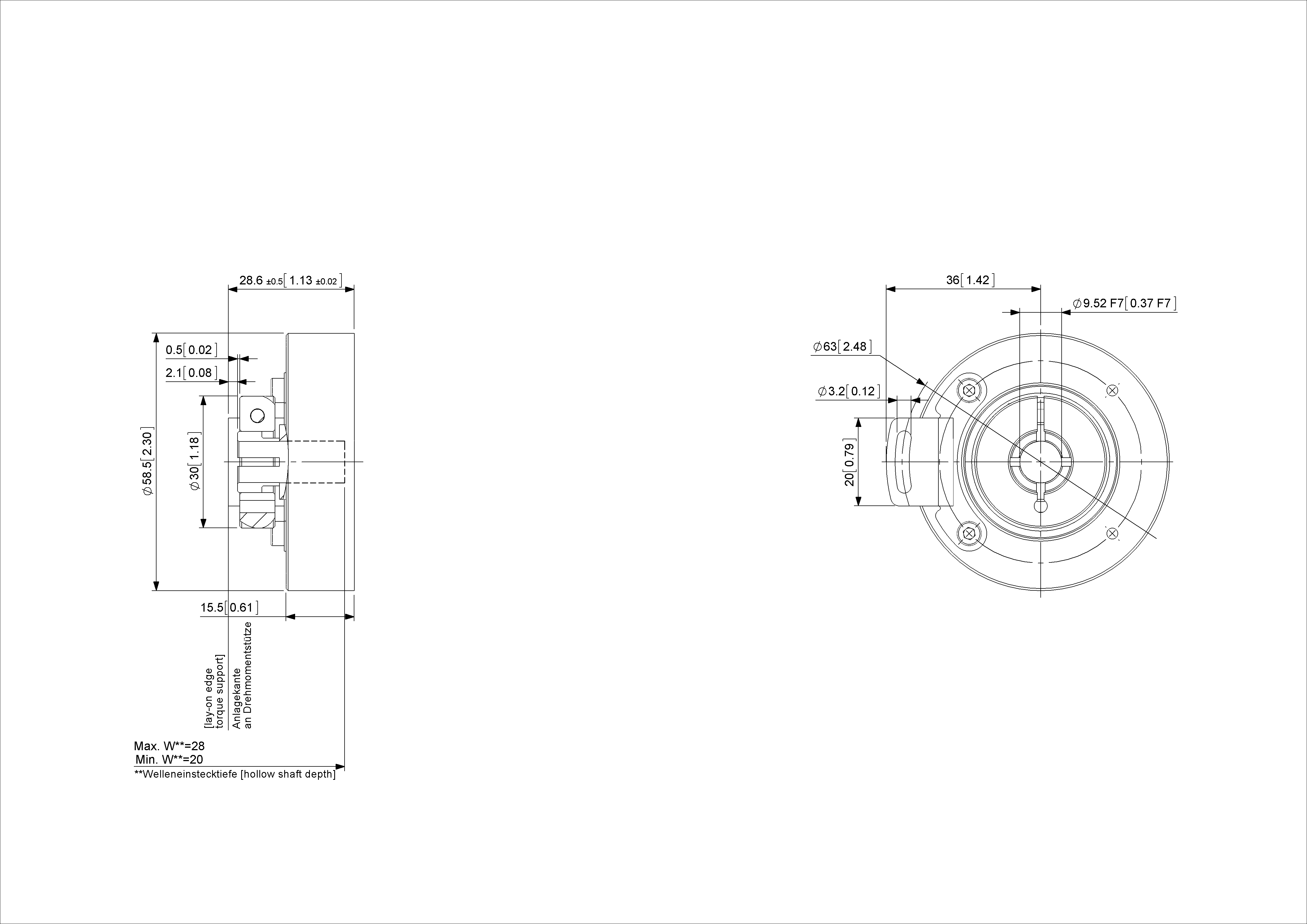

| Interface | SSI with Preset |
| Manual Functions | Preset + complement via cable or connector |
| Interface Cycle Time | ≥ 25 µs |
| Multiple Transmissions | Once |
| Number of Preset Cycles | 5,100,000 |
| SSI Format | MMMMMMMMMMMMMSSSSSSSSSSSS0 |
| Output Driver | RS422 |
| Supply Voltage | 4.5 – 30 VDC |
| Current Consumption | Typical 50 mA |
| Power Consumption | ≤ 1.0 W |
| Start-Up Time | < 1 s |
| Clock Input | RS 422, via Optocoupler |
| Clock Frequency | 100 kHz – 2 MHz |
| Reverse Polarity Protection | Yes |
| Short Circuit Protection | Yes |
| EMC: Emitted Interference | DIN EN 61000-6-4 |
| EMC: Noise Immunity | DIN EN 61000-6-2 |
| MTTF | 350 years @ 40 °C |
| Technology | Magnetic |
| Resolution Singleturn | 12 bit |
| Resolution Multiturn | 13 bit |
| Multiturn Technology | Self powered magnetic pulse counter (no battery, no gear) |
| Accuracy (INL) | ±0.0878° (≤ 12 bit) |
| Sense Signal (Default) | Clockwise shaft movement (front view on shaft) |
| Code | Gray |
| Protection Class (Shaft) | IP65 |
| Protection Class (Housing) | IP66/IP67 |
| Humidity | 98% RH, no condensation |
| Max Temperature | +85 °C (+185 °F) |
| Min Temperature | -40 °C (-40 °F) |
| Housing Material | Steel |
| Housing Coating | Wet coating (RAL 9006 White Aluminium) + Cathodic corrosion protection (>720 h salt spay resistance) |
| Flange Type | Blind Hollow, ø 58 mm (H) |
| Flange Material | Aluminum |
| Shaft Type | Blind Hollow, Depth = 28 mm |
| Shaft Diameter | ø 9.52 mm (3/8") |
| Shaft Material | Stainless Steel V2A (1.4305, 303) |
| Rotor Inertia | ≤ 30 gcm² [≤ 0.17 oz-in²] |
| Friction Torque | ≤ 3 Ncm @ 20 °C (4.2 oz-in @ 68 °F) |
| Max. Permissible Mechanical Speed | ≤ 12000 1/min |
| Shock Resistance | ≤ 100 g (half sine 6 ms, EN 60068-2-27) |
| Permanent Shock Resistance | ≤ 10 g (half sine 16 ms, EN 60068-2-29) |
| Vibration Resistance | ≤ 10 g (10 Hz – 1000 Hz, EN 60068-2-6) |
| Length | 71,2 mm (2.80") |
| Weight | 325 g (0.72 lb) |
| Maximum Axial / Radial Misalignment | Static ± 0.3 mm /± 0.5 mm; Dynamic ± 0.1 mm /± 0.2 mm |
| Connection Orientation | Axial |
| Connector | M12, Male, 8 pin, a coded |
| Approval | CE |
| Product Life Cycle | Established |
| Signal | Connector | Pin Number |
|---|---|---|
| Power Supply | 1 | 2 |
| GND | 1 | 1 |
| Data+ | 1 | 5 |
| Data- | 1 | 6 |
| Clock+ | 1 | 3 |
| Clock- | 1 | 4 |
| Preset | 1 | 7 |
| DIR | 1 | 8 |
| Shielding | 1 | Connector Housing |
