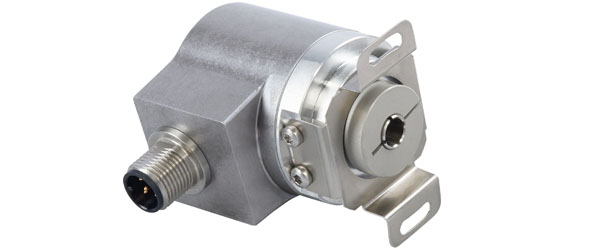

| Interface | IO-Link Specification V1.1 |
| Profile | Smart Sensor Profile 2nd Edition |
| Diagnostics | Device Status, Internal Temperature, Operating Hours Counter, Movement Hours Counter, Power Cycles Counter |
| Features | Position and Velocity Output, 5x SW CAM, Connector Pin 2 as Preset, Reset or HW CAM |
| Transmission Rate | COM3 230,4 kBaud |
| Interface Cycle Time | 2.3 ms |
| Programming Functions | Singleturn and Total Resolution, Velocity Filter, Preset Value, HW and SW CAM, Counting Direction, Pin 2 I/O-Configuration |
| Output Driver | IEC 61131-9 |
| Supply Voltage | 18 - 32 V DC |
| Start-Up Time | < 1 s |
| Reverse Polarity Protection | Yes |
| Short Circuit Protection | Yes |
| EMC: Emitted Interference | DIN EN 61000-6-4 |
| EMC: Noise Immunity | DIN EN 61000-6-2 |
| MTTF | 283 years @40 °C |
| Technology | Magnetic |
| Resolution Singleturn | 16 bit |
| Resolution Multiturn | 0 bit |
| Total Resolution | 65536 |
| Accuracy (INL) | ±0.0878° (≤ 12 bit) |
| Sense Signal (Default) | Clockwise shaft movement (front view on shaft) |
| Code | Binary |
| Protection Class (Shaft) | IP65 |
| Protection Class (Housing) | IP65 |
| Min Temperature | -40 °C (-40 °F) |
| Max Temperature | +85 °C (+185 °F) |
| Humidity | 98% RH, no condensation |
| Housing Material | Steel |
| Housing Coating | Cathodic corrosion protection (>720 hrs salt spray resistance) |
| Flange Type | Blind Hollow, ø 36 mm / ø 42 mm |
| Flange Material | Aluminum |
| Shaft Type | Blind Hollow, Depth = 18 mm |
| Shaft Diameter | ø 8 mm (0.31") |
| Shaft Material | Stainless Steel V2A (1.4305, 303) |
| Friction Torque | ≤ 3 Ncm @ 20 °C (4.2 oz-in @ 68 °F) |
| Max. Permissible Mechanical Speed | ≤ 12000 1/min |
| Shock Resistance | ≤ 100 g (half sine 6 ms, EN 60068-2-27) |
| Permanent Shock Resistance | ≤ 10 g (half sine 16 ms, EN 60068-2-29) |
| Vibration Resistance | ≤ 10 g (10 Hz – 1000 Hz, EN 60068-2-6) |
| Length | 50,2 mm (1.98") |
| Weight | 180 g (0.40 lb) |
| Maximum Axial / Radial Misalignment | Static ± 0.3 mm /± 0.5 mm; Dynamic ± 0.1 mm /± 0.2 mm |
| Connection Orientation | Radial |
| Connector | M12, Male, 5 pin, a coded |
| Approval | CE + cULus |
| Product Life Cycle | Lab Sample |
| Signal | Connector | Pin Number |
|---|---|---|
| Power Supply | 1 | 1 |
| GND | 1 | 3 |
| Digital Input / Output | 1 | 2 |
| IO-Link | 1 | 4 |
| Not Connected | 1 | 5 |
