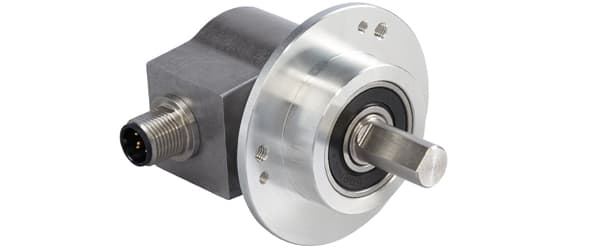

| Interface | Analog Voltage |
| Manual Functions | Preset + complement via cable or connector |
| Supply Voltage | 8 – 32 VDC |
| Current Consumption | Typical 15 mA @24V (no load) |
| Start-Up Time | <500 ms |
| Min. Load Resistance | 5 kΩ |
| Analog Accuracy | @ 10 V = ±10 mV (with an ideal power supply) |
| Linearity | 0.15% |
| Settling Time | 32 ms (from min value to max value jump) |
| Reverse Polarity Protection | Yes |
| Short Circuit Protection | Yes |
| EMC: Emitted Interference | DIN EN 61000-6-4 |
| EMC: Noise Immunity | DIN EN 61000-6-2 |
| MTTF | 300.9 years @ 40 °C |
| Technology | Magnetic |
| Resolution Singleturn | 270° Measurement Angle |
| Resolution Multiturn | 0 bit |
| Accuracy (INL) | ±0.0878° (≤ 12 bit) |
| Sense Signal (Default) | Counterclockwise shaft movement (front view on shaft) |
| Code | Analog Voltage 0 – 5 V |
| Cycle Time Base Sensor | < 100 µs |
| Minimum Measurement Range | 0 – 11.25° |
| Resolution of Output | Max. 13 bits over entire measuring range (Fractional Turns - Resolution decreases less than 13 bits when measuring range is less than 90 degrees) |
| Multiturn Range | Singleturn |
| Protection Class (Shaft) | IP65 |
| Protection Class (Housing) | IP65 |
| Min Temperature | -40 °C (-40 °F) |
| Max Temperature | +85 °C (+185 °F) |
| Humidity | 98% RH, no condensation |
| Housing Material | Steel |
| Housing Coating | Cathodic corrosion protection (>720 hrs salt spray resistance) |
| Flange Type | Clamp, ø 58 mm (M) |
| Flange Material | Aluminum |
| Shaft Type | Solid, Single Flat, Length = 20 mm |
| Shaft Diameter | ø 10 mm (0.39") |
| Shaft Material | Stainless Steel V2A (1.4305, 303) |
| Max. Shaft Load | Axial 40 N, Radial 110 N |
| Minimum Mechanical Lifetime(10^8 revolutions with Fa/Fr) | 430 (20N/40N), 150 (40N/60N), 100 (40N/80N), 55 (40N/110N) |
| Rotor Inertia | ≤ 30 gcm² [≤ 0.17 oz-in²] |
| Friction Torque | ≤ 3 Ncm @ 20 °C (4.2 oz-in @ 68 °F) |
| Max. Permissible Mechanical Speed | ≤ 12000 1/min |
| Shock Resistance | ≤ 100 g (half sine 6 ms, EN 60068-2-27) |
| Permanent Shock Resistance | ≤ 10 g (half sine 16 ms, EN 60068-2-29) |
| Vibration Resistance | ≤ 10 g (10 Hz – 1000 Hz, EN 60068-2-6) |
| Weight | 255 g (0.56 lb) |
| Connection Orientation | Radial |
| Connector | M12, Male, 5 pin, a coded |
| Approval | CE + cULus |
| Product Life Cycle | Established |
| Signal | Connector | Pin Number |
|---|---|---|
| Power Supply | 1 | 2 |
| GND | 1 | 3 |
| Analog Output | 1 | 1 |
| Set1/Direction | 1 | 5 |
| Set2/Zero Set | 1 | 4 |
