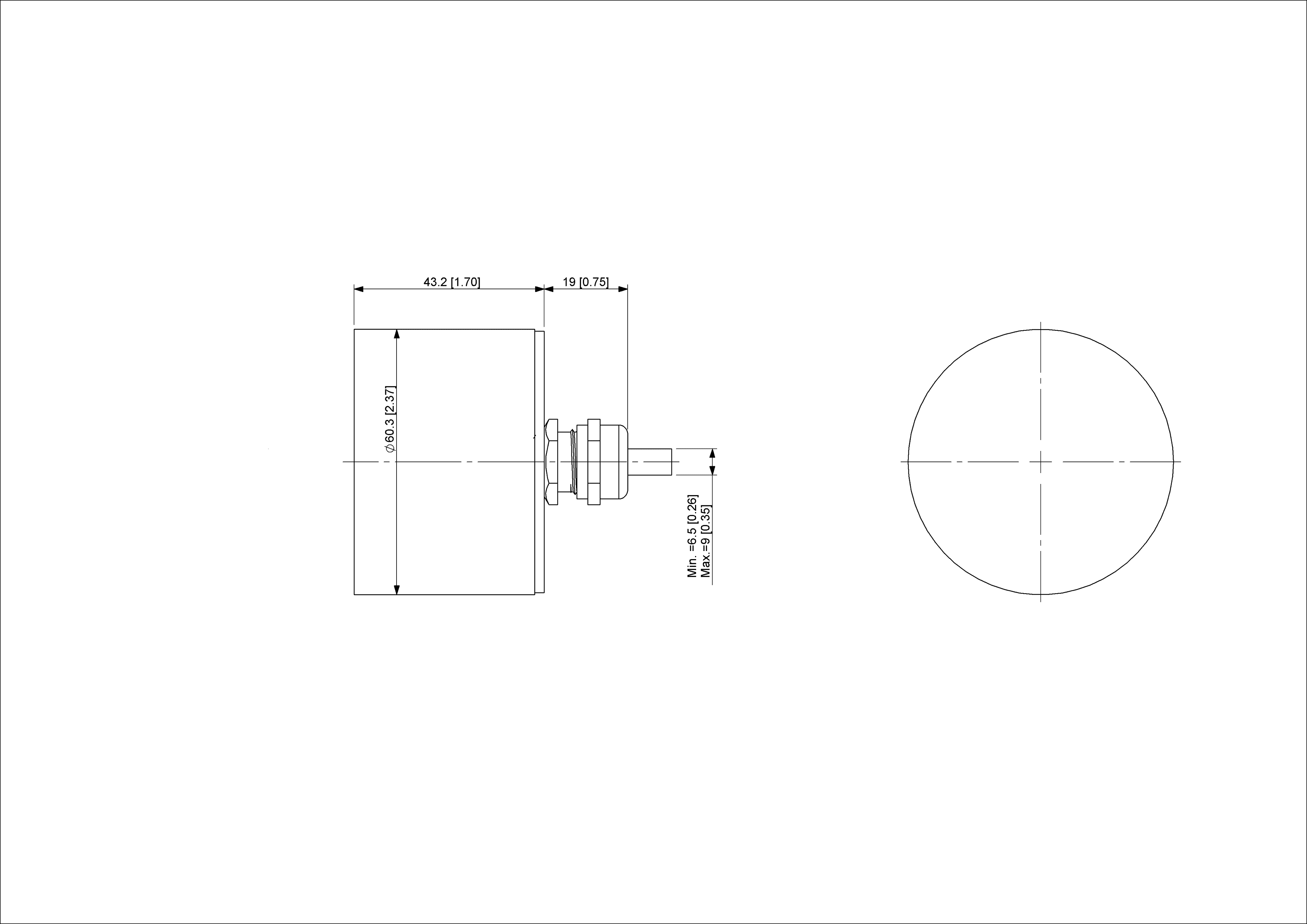

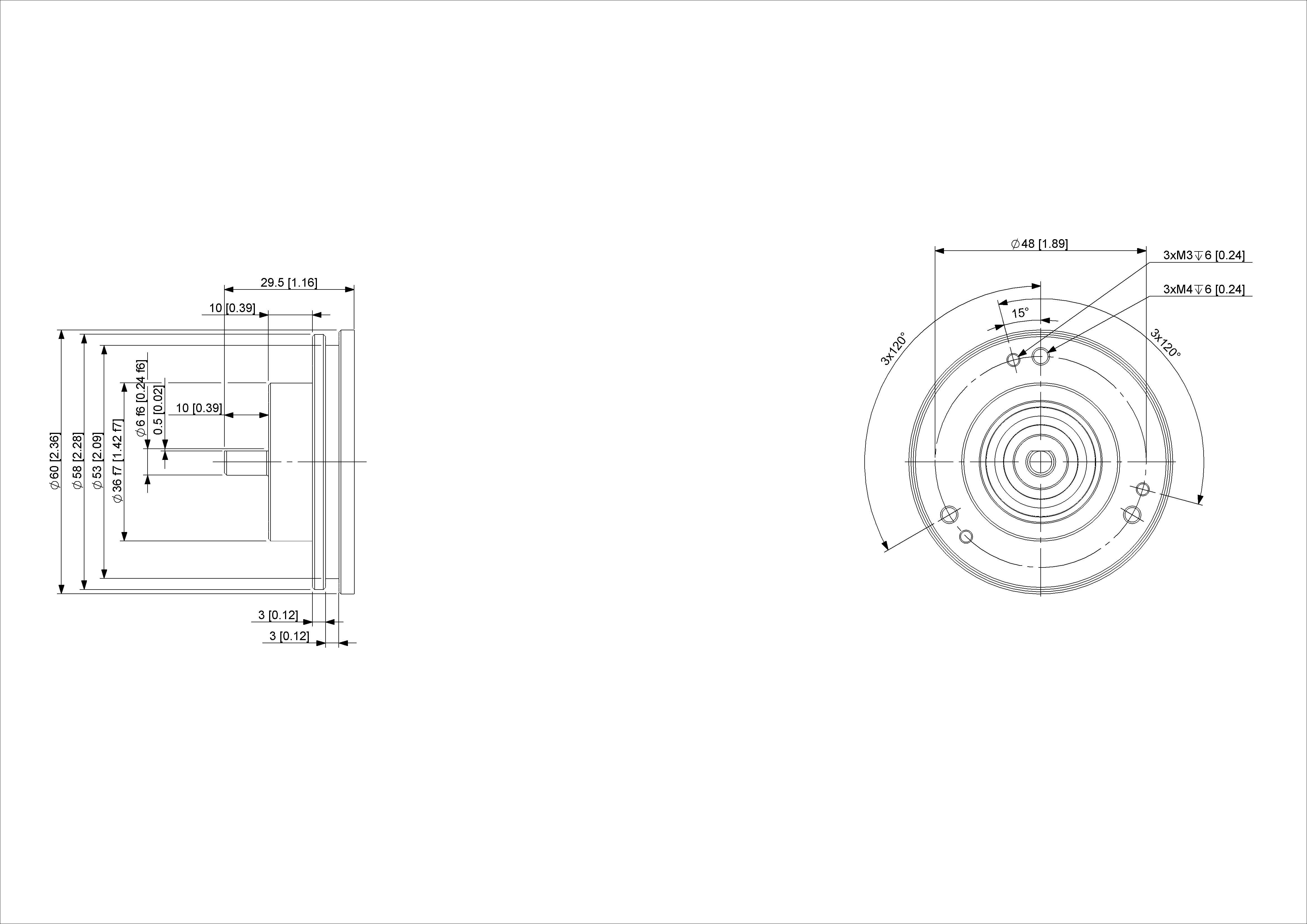

| Interface | SSI with Preset |
| Manual Functions | Preset + complement via cable or connector |
| Interface Cycle Time | ≥ 25 µs |
| Output Driver | RS422 |
| Supply Voltage | 4.5 – 30 VDC |
| Power Consumption | ≤ 1.5 W |
| Start-Up Time | < 1 s |
| Clock Input | RS 422, via Optocoupler |
| Clock Frequency | 100 kHz – 2 MHz |
| Reverse Polarity Protection | Yes |
| Short Circuit Protection | Yes |
| EMC: Emitted Interference | DIN EN 61000-6-4 |
| EMC: Noise Immunity | DIN EN 61000-6-2 |
| MTTF | 16.2 years @ 40 °C |
| Technology | Optical |
| Resolution Singleturn | 12 bit |
| Resolution Multiturn | 12 bit |
| Multiturn Technology | Mechanical Gearing (no Battery) |
| Accuracy (INL) | ±0.0220° (14 – 16 bit), ±0.0439° (≤13 bit) |
| Sense Signal (Default) |
| Clockwise shaft movement (front view on shaft) |
| Code | Gray |
| Protection Class (Shaft) | IP66/IP67 |
| Protection Class (Housing) | IP66/IP67 |
| Min Temperature | -40 °C fixed (-40 °F), -30 °C flexible (-22 °F) |
| Max Temperature | +85 °C (+185 °F) |
| Humidity | 98% RH, no condensation |
| Housing Material | Stainless Steel V2A (1.4305, 303) |
| Housing Coating | No Coating |
| Flange Type | Clamp, ø 58 mm (C) |
| Flange Material | Stainless steel V2A (1.4305; 303) |
| Shaft Type | Solid, Length = 10 mm |
| Shaft Diameter | ø 6 mm (0.24") |
| Shaft Material | Stainless Steel V2A (1.4305, 303) |
| Max. Shaft Load | Axial 40 N, Radial 110 N |
| Minimum Mechanical Lifetime(10^8 revolutions with Fa/Fr) | 530 (20N/40N), 185 (40N/60N), 130 (40N/80N), 80 (40N/110N) |
| Rotor Inertia | ≤ 30 gcm² [≤ 0.17 oz-in²] |
| Friction Torque | ≤ 5 Ncm @ 20 °C, (7.1 oz-in @ 68 °F) |
| Max. Permissible Mechanical Speed | ≤ 3000 1/min |
| Shock Resistance | ≤ 100 g (half sine 6 ms, EN 60068-2-27) |
| Permanent Shock Resistance | ≤ 10 g (half sine 16 ms, EN 60068-2-29) |
| Vibration Resistance | ≤ 10 g (10 Hz – 1000 Hz, EN 60068-2-6) |
| Weight | 590 g (1.30 lb) |
| Connection Orientation | Axial |
| Cable Length | 1 m [39"] |
| Wire Cross Section | 0.14 mm² / AWG 26 |
| Material / Type | PUR / PU |
| Cable Diameter | 8 mm (0.31 in) |
| Minimum Bend Radius | 40 mm (1.57") fixed, 80 (3.15") flexing |
| Approval | CE + cULus |
| Product Life Cycle | Established |
| Signal | Color |
|---|---|
| Power Supply | Brown |
| GND | White |
| Data+ | Gray |
| Data- | Pink |
| Clock+ | Green |
| Clock- | Yellow |
| Preset | Blue |
| DIR | Red |
| Shielding | Shield |
