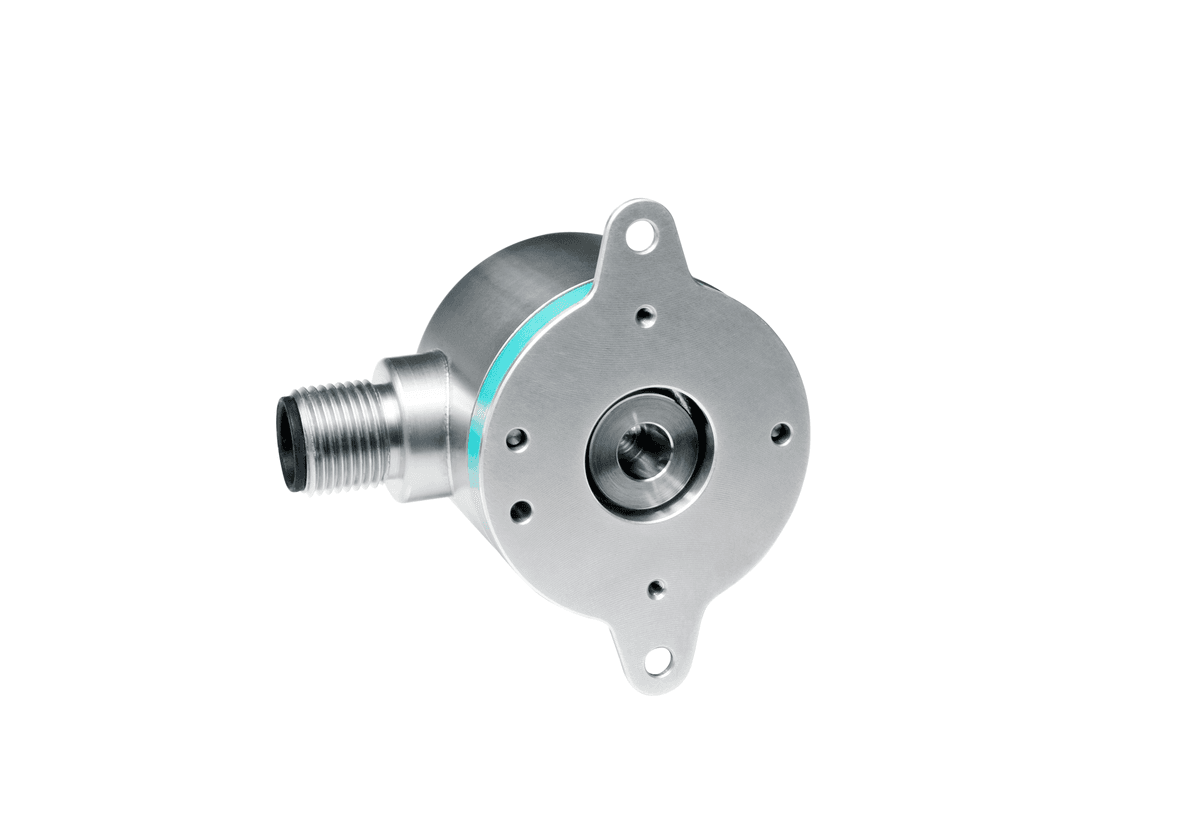

| 接口 | SSI带预设 |
| 手动功能 | Preset via cable or connector |
| 接口周期时间 | ≥ 50 µs |
| SSI Format | 8x"0" + MT Resolution quantity of digits + ST Resolution quantity of digits |
| 诊断 | Error and Warning Bits, Register Values |
| 编程功能 | Via config pin: calibration, WIEGAND sensor test, filter selection, preset value, temperature |
| 输出驱动器 | RS422 |
| 接口 | M12, 公型, 8针, A码 |
| 电源电压 | 4.75 – 15 VDC |
| 功耗 | Typical 32 mA, max 35 mA @5V DC |
| 功耗 | ≤ 0.3 W |
| 启动时间 | < 100 ms |
| 时钟输入 | RS422 |
| 时钟速度 | 300 kHz - 1 MHz |
| 反极性保护 | 是 |
| 短路保护 | 是 |
| EMC:发射干扰 | The kit encoder is a sub-assembly and not to be considered an independent system. Therefore, compliance with CE requirements has to be ensured by the integrator for the overall set-up. |
| 允许最高转速 | 12000 1/min |
| EMC:抗干扰 | The kit encoder is a sub-assembly and not to be considered an independent system. Therefore, compliance with CE requirements has to be ensured by the integrator for the overall set-up. |
| MTTF | 20 years @ 105 °C |
| 技术 | Magnetic TMR |
| 单圈分辨率 | 15 bit |
| 分辨率 多圈 | 13 位 |
| 精度 (INL) | ±0.0878° (≤12 bit) measured after calibration at room temp. |
| 认证 认证/寿命 码制 码 | 二进制码 |
| 外壳防护等级 (外壳) | IP40 |
| Min Temperature | - 40 °C (- 40 °F) |
| Max Temperature | +85 °C (+185 °F) |
| 顶部屏蔽 | 螺丝紧固 |
| 轴类型 | 盲孔 |
| Kit Shaft Dimension | 5 mm |
| 轴的材料 | 不锈钢 V4A (1.4404, 316L) |
| 轴紧固选项 | 轴上顶丝 |
| 最大轴向/径向 错位 | 静止 ± 0.3 mm /± 0.5 mm; 动态 ± 0.1 mm /± 0.2 mm |
| 重量 | 155 g (0.34 lb) |
| 转子转动惯量 | ≤ 10 gcm² [≤ 0.06 oz-in²] |
| 耐冲击性 | ≤ 200 g (half sine 6 ms, EN 60068-2-27) |
| 持久的抗冲击性 | ≤ 20 g (half sine 16 ms, EN 60068-2-29) |
| 耐振动性 | ≤ 30 g (10 Hz – 1000 Hz, EN 60068-2-6) |
| Approval | No CE |
| 产品寿命周期信息 | 新产品 |
| 信号 | 引脚编号 |
|---|---|
| GND | 1 |
| Preset | 7 |
| Config | 8 |
| Data+ | 5 |
| Data- | 6 |
| Clock- | 4 |
| Clock+ | 3 |
| Power Supply | 2 |
