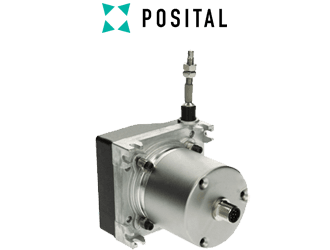

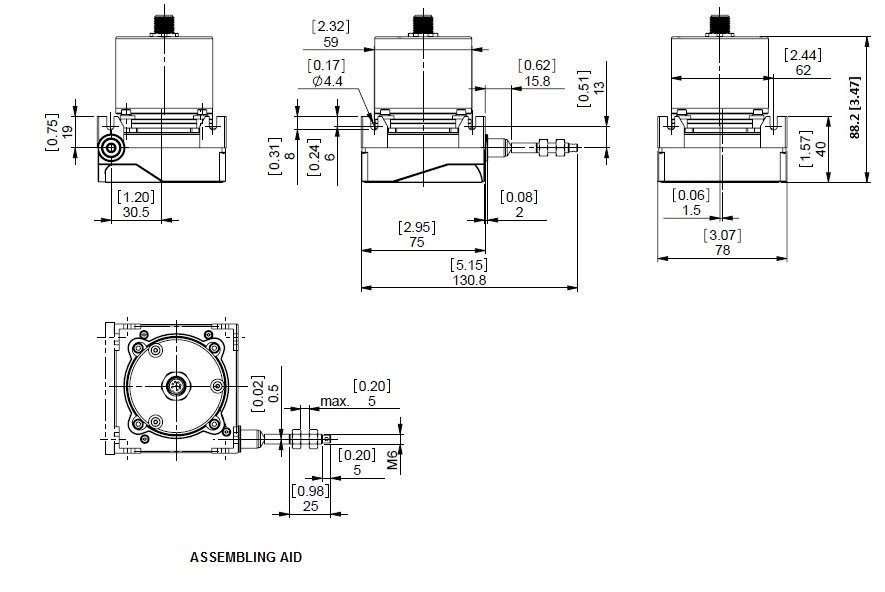

| Supply Voltage | 10 – 30 VDC |
| Power Consumption | ≤ 2.5 W |
| Start-Up Time | < 1 s |
| Min Temperature | -40 °C (-40 °F) |
| Max Temperature | +80 °C (+176 °F) |
| Weight | 660 g (1.46 lb) |
| Protection Class | IP64 / IP65 |
| EMC: Emitted Interference | DIN EN 61000-6-4 |
| EMC: Noise Immunity | DIN EN 61000-6-2 |
| Measuring Length | 3.00 m (9.84') |
| Mean Length per Revolution | 200 mm |
| Wire Material | Plastic Coated Stainless Steel |
| Wire Diameter | 0.61 mm |
| Housing Material | Steel |
| Draw Wire Housing Material | Zinc Die-cast |
| Max. Speed of Wire Displacement | 0.8 m / s |
| Max. Angular Acceleration | 1.0 g |
| Max Extension Force | 3.0 N |
| Min Retraction Force | 2.5 N |
| Actuation Lifetime | Not Available |
| Wire Mounting | M6 Thread |
| Max. Wire Exit Angle | ±0° |
| Technology | Optical (≤ 0.02°) |
| Accuracy | ± 0.10 % Full Scale Output |
| Repeatability | ±0.005 % Full Scale Output |
| Resolution Singleturn | 13 bit |
| Resolution Multiturn | 12 bit |
| Approx. Linear Resolution | 24.4 µm |
| Code | Binary |
| Interface | CANopen |
| Profile | DS-406 |
| Programming Functions | Resolution, preset, 2 limit switches, 8 CAMS, baud rate, CAN-Identifier, bootloader, transmission modes: polled, cyclic, sync |
| Manual Functions | Address selector switch 0-99 and terminal resistor (with connection cap) |
| Transmission Rate | min. 20 kBaud, max. 1 MBaud |
| Interface Cycle Time | ≥ 1 ms |
| Output Driver | Transceiver (ISO 11898), Galvanically Isolated by Opto-Couplers |
| Current Consumption | ≤ 230 mA @ 10 V DC, ≤ 100 mA @ 24 V DC |
| Reverse Polarity Protection | Yes |
| Short Circuit Protection | Yes |
| MTTF | 13,5 |
| Connection Orientation | Axial |
| Connection Orientation (w.r.t Draw Wire) | Radial 0 / Axial |
| Connection Type | Cable / Connector |
| Connector | M12, Male, 5 pin, a coded |
| Product Life Cycle | Established |
| Signal | Pin Number |
|---|---|
| Power Supply | 2 |
| GND | 3 |
| CAN High | 4 |
| CAN Low | 5 |
| CAN GND | 1 |
