10059528- Connection cap Profibus AH58-C1DP-3PG-VA

10059528- Connection cap Profibus AH58-C1DP-3PG-VA
Buy product
Datasheet Dimensional Drawing Downloads

General Data

IntroFor OCD-DPC1B-xxxx-xxxV-H3P
InterfaceProfibus DP
Manual FunctionsAddress selector switch 0-99 and terminal resistor (with connection cap)
Display LEDs2 color status LED (7 Status information)
Name10059528- Connection cap Profibus AH58-C1DP-3PG-VA

Electrical Data

Connection Cap TypeRemovable for easy replacing encoder without new installation of cable, Rotary switches with visible node number, No active components, Terminal resistor switch cut the outgoing bus too, Big spring clips
Connection Type Web3 x Cable Gland

Mechanical Data

Connection Cap MaterialStainless Steel V2A (1.4305; 303)
Connection Type3 x Cable Gland
Compatible cable diameter5 ... 9 mm
Connection Cap Weight405 g
Connection Cap Length29 mm

Product Life Cycle

Product Life CycleEstablished

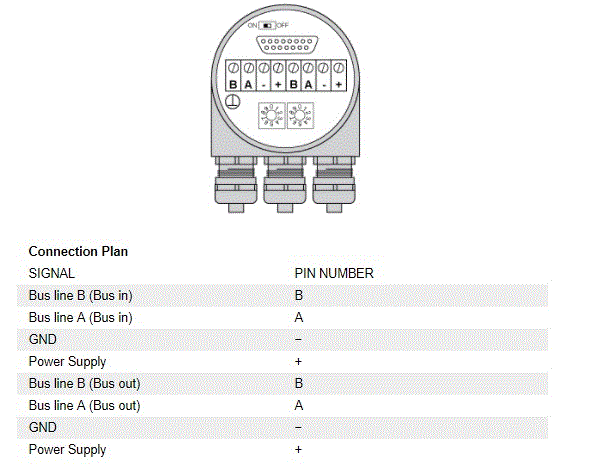

Dimensional Drawing

Dimensional Drawing
