| Introdução | For OCD-DPC1B-xxxx-xxxx-H72 |
| Interface | Profibus DP |
| Funções Manuais | Address selector switch 0-99 and terminal resistor (with connection cap) |
| Programação | 2 color status LED (7 Status information) |
| 10059556- Connection cap Profibus AH58-C1DP-072 |
| Sensor Externo Fornecido | Rotary switches with visible node number, No active components, Terminal resistor switch cut the outgoing bus too |

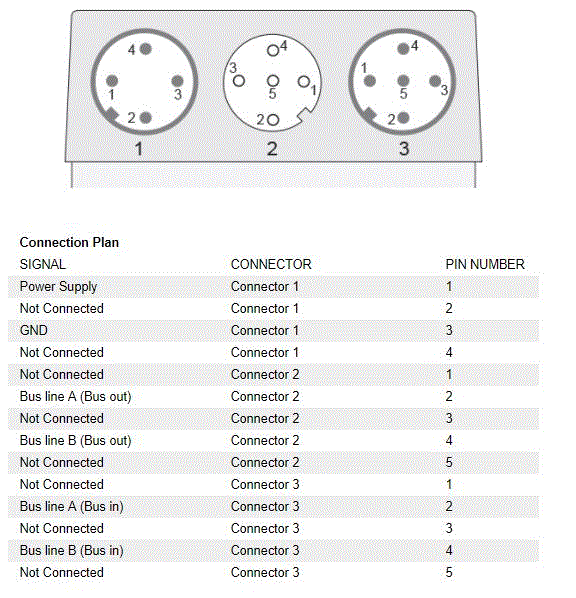

| Conexão 1 | M12, Male, 4 pin, a coded |
| Conexão 2 | M12, Female, 5 pin, b coded |
| Conexão 3 | M12, Male, 5 pin, b coded |
| Painel de Interruptores | Aluminum |
| Painel de Interruptores | 3 x M12 Connector (Profibus) |
| Painel de Interruptores | 160 g |
| Painel de Interruptores | 28 mm |
| Ciclo de vida de produto | Established |
