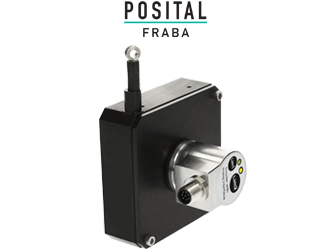

| Supply Voltage | 4.5 – 30 VDC |
| Power Consumption | ≤ 1.0 W |
| Start-Up Time | < 1 s |
| Weight | 740 g (1.63 lb) |
| Protection Class | IP54 |
| EMC: Emitted Interference | DIN EN 61000-6-4 |
| EMC: Noise Immunity | DIN EN 61000-6-2 |
| Max Temperature | +85 °C (+185 °F) |
| Min Temperature | -40 °C (-40 °F) |
| Measuring Length | 3.00 m (9.84') |
| Length per Revolution | 200 mm |
| Wire Material | Nylon Coated Stainless Steel |
| Wire Diameter | 0.48 mm |
| Housing Material | Steel |
| Draw Wire Housing Material | Anodized Al Frame, Polycarbonate Spring Housing |
| Max. Speed of Wire Displacement | 0.1 m/s |
| Max. Angular Acceleration | 1.0 g |
| Max Extension Force | 3.9 N |
| Min Retraction Force | 2.1 N |
| Actuation Lifetime | 1.0 mio Cycles (Estimated based on ideal conditions) |
| Wire Mounting | Eyelet |
| Technology | Magnetic (≤ 0.09°) |
| Accuracy | ±0.04 % Full Scale Output |
| Repeatability | ±0.02 % Full Scale Output |
| Resolution Singleturn | 13 bit |
| Resolution Multiturn | 12 bit |
| Approx. Linear Resolution | 24.4 µm |
| Code | Gray |
| Interface | SSI with Button and LEDs |
| Manual Functions | Preset + complement via cable or connector |
| Interface Cycle Time | ≥ 25 µs |
| Output Driver | RS422 |
| Current Consumption | Typical 50 mA |
| Clock Input | RS 422, via Optocoupler |
| Clock Frequency | 100 kHz – 2 MHz |
| Reverse Polarity Protection | Yes |
| Short Circuit Protection | Yes |
| MTTF | 350 years @ 40 °C |
| Connection Orientation | Radial |
| Connection Orientation (w.r.t Draw Wire) | Radial 9 |
| Connector | M12, Male, 8 pin, a coded |
| Product Life Cycle | Discontinued |
| Signal | Pin Number |
|---|---|
| Power Supply | 2 |
| GND | 1 |
| Data+ | 5 |
| Data- | 6 |
| Clock+ | 3 |
| Clock- | 4 |
| Preset | 7 |
| DIR | 8 |
| ? | |
| ? | |
| ? | |
| Shielding | Connector Housing |
