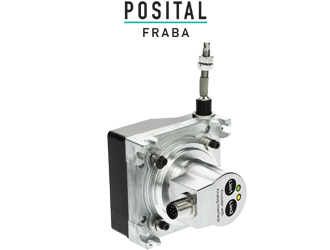

| Supply Voltage | 4.5 – 30 VDC |
| Power Consumption | ≤ 1.0 W |
| Start-Up Time | < 1 s |
| Weight | 565 g (1.25 lb) |
| Protection Class | IP64 / IP65 |
| EMC: Emitted Interference | DIN EN 61000-6-4 |
| EMC: Noise Immunity | DIN EN 61000-6-2 |
| Max Temperature | +80 °C (+176 °F) |
| Min Temperature | -40 °C (-40 °F) |
| Measuring Length | 3.00 m (9.84') |
| Mean Length per Revolution | 200 mm |
| Wire Material | Plastic Coated Stainless Steel |
| Wire Diameter | 0.61 mm |
| Housing Material | Steel |
| Draw Wire Housing Material | Zinc Die-cast |
| Max. Speed of Wire Displacement | 0.8 m / s |
| Max. Angular Acceleration | 1.0 g |
| Max Extension Force | 3.0 N |
| Min Retraction Force | 2.5 N |
| Actuation Lifetime | Not Available |
| Wire Mounting | M6 Thread |
| Max. Wire Exit Angle | ±0° |
| Technology | Magnetic (≤ 0.09°) |
| Accuracy | ±0.012 % Full Scale Output |
| Full Scale Output | ±0.005 % Full Scale Output |
| Resolution Singleturn | 13 bit |
| Resolution Multiturn | 12 bit |
| Approx. Linear Resolution | 24.4 µm |
| Code | Binary |
| Interface | SSI with Button and LEDs |
| Manual Functions | Preset via push button and cable or connector |
| Interface Cycle Time | ≥ 25 µs |
| Output Driver | RS422 |
| Current Consumption | Typical 50 mA |
| Clock Input | RS 422, via Optocoupler |
| Clock Frequency | 100 kHz – 2 MHz |
| Reverse Polarity Protection | Yes |
| Short Circuit Protection | Yes |
| MTTF | 350 years @ 40 °C |

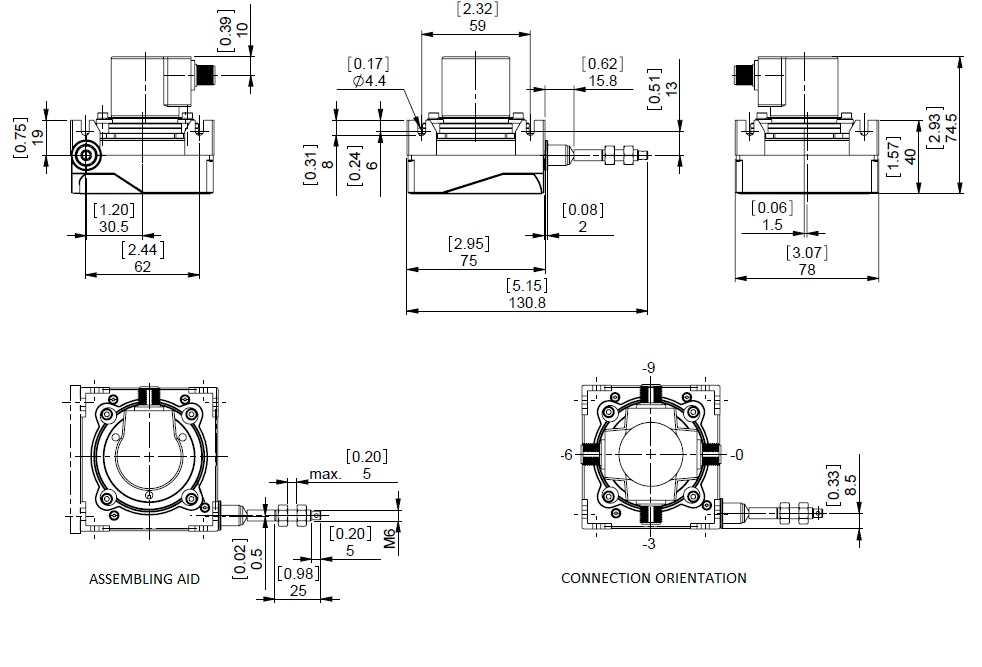

| Connection Orientation | Radial |
| Connection Orientation (w.r.t Draw Wire) | Radial 6 |
| Connector | M12, Male, 8 pin, a coded |
| Product Life Cycle | Established |
| Signal | Pin Number |
|---|---|
| Power Supply | 2 |
| GND | 1 |
| Data+ | 5 |
| Data- | 6 |
| Clock+ | 3 |
| Clock- | 4 |
| Preset | 7 |
| DIR | 8 |
| ? | |
| ? | |
| ? | |
| Shielding | Connector Housing |
