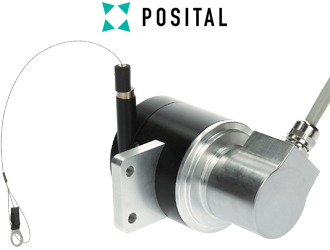

| Supply Voltage | 4.5 – 30 VDC |
| Power Consumption | ≤ 1.0 W |
| Start-Up Time | < 1 s |
| Weight | 815 g (1.80 lb) |
| Protection Class | IP64 / IP65 |
| EMC: Emitted Interference | DIN EN 61000-6-4 |
| EMC: Noise Immunity | DIN EN 61000-6-2 |
| Max Temperature | +80 °C (+176 °F) |
| Min Temperature | -20 °C (-4 °F) |
| Measuring Length | 1.90 m (6.23') |
| Length per Revolution | 150 mm |
| Wire Material | Coated Polyamide Stainless Steel |
| Wire Diameter | 0.45 mm |
| Housing Material | Steel |
| Draw Wire Housing Material | Aluminum |
| Max. Speed of Wire Displacement | 2.0 m / s |
| Max. Angular Acceleration | 12.0 g |
| Max Extension Force | 5.0 N |
| Min Retraction Force | 3.5 N |
| Actuation Lifetime | 1.0 mio Cycles (Estimated based on ideal conditions) |
| Wire Mounting | Eyelet |
| Max. Wire Exit Angle | ±3° |
| Technology | Magnetic (≤ 0.09°) |
| Accuracy | ±0.02 % Full Scale Output |
| Repeatability | ±0.006 % Full Scale Output |
| Resolution Singleturn | 16 bit |
| Resolution Multiturn | 14 bit |
| Approx. Linear Resolution | 2.3 µm (theoretical), limited by mechanics |
| Code | Gray |
| Interface | SSI with Preset |
| Manual Functions | Preset + complement via cable or connector |
| Interface Cycle Time | ≥ 25 µs |
| Output Driver | RS422 |
| Current Consumption | Typical 50 mA |
| Clock Input | RS 422, via Optocoupler |
| Clock Frequency | 100 kHz – 2 MHz |
| Reverse Polarity Protection | Yes |
| Short Circuit Protection | Yes |
| MTTF | 350 years @ 40 °C |
| Connection Orientation | Radial |

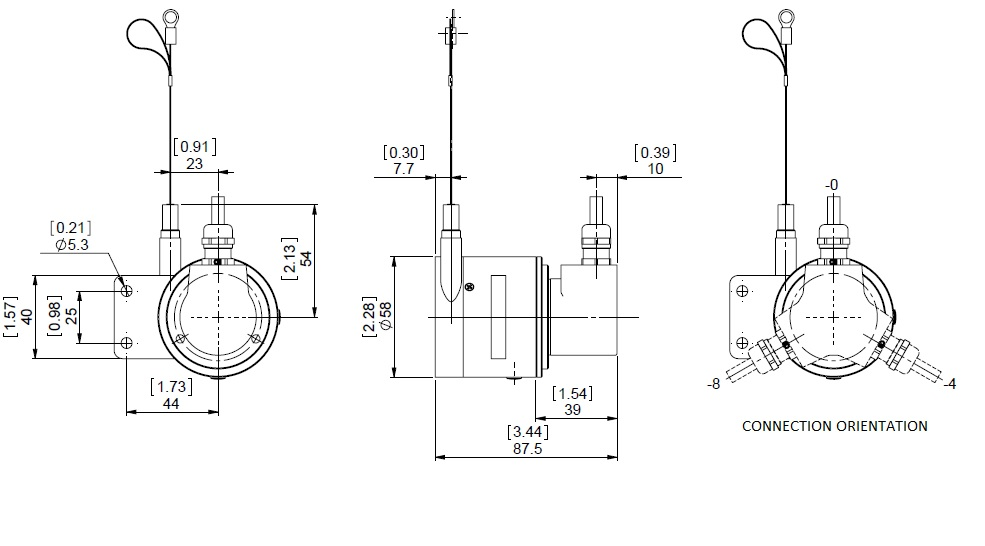

| Connection Orientation (w.r.t Draw Wire) | Radial 8 |
| Cable Length | 10 m [394"] |
| Wire Cross Section | 0.14 mm² / AWG 26 |
| Material / Type | PVC |
| Cable Diameter | 6 mm (0.24 in) |
| Minimum Bend Radius | 46 mm (1.81") fixed, 61 mm (2.4") flexing |
| Product Life Cycle | Established |
| Signal | Color |
|---|---|
| Power Supply | Brown |
| GND | White |
| Data+ | Gray |
| Data- | Pink |
| Clock+ | Green |
| Clock- | Yellow |
| Preset | Blue |
| DIR | Red |
| Shielding | Shield |
