| Supply Voltage | 9 – 30 VDC |
| Power Consumption | ≤ 1.2 W |
| Weight | 1025 g (2.26 lb) |
| Protection Class | IP64 / IP65 |
| EMC: Emitted Interference | DIN EN 61000-6-4 |
| EMC: Noise Immunity | DIN EN 61000-6-2 |
| Max Temperature | +80 °C (+176 °F) |
| Min Temperature | -20 °C (-4 °F) |
| Measuring Length | 7.50 m (24.61') |
| Mean Length per Revolution | 333.3 mm |
| Wire Material | Coated Polyamide Stainless Steel |
| Wire Diameter | 0.45 mm |
| Housing Material | Steel |
| Draw Wire Housing Material | Plastic |
| Max. Angular Acceleration | 1.5 g |
| Max Extension Force | 13.0 N |
| Min Retraction Force | 7.0 N |
| Actuation Lifetime | 0.5 mio Cycles (Estimated based on ideal conditions) |
| Wire Mounting | Wireclip |
| Max. Wire Exit Angle | ±3° |
| Technology | Magnetic (≤ 0.09°) |
| Accuracy | ±0.05 % Full Scale Output |
| Full Scale Output | ±0.01 % Full Scale Output |
| Resolution Singleturn | 13 bit |
| Resolution Multiturn | 12 bit |
| Approx. Linear Resolution | 40.7 µm |
| Code | Binary |
| Interface | CANopen |
| Profile | DS-406 |
| Programming Functions | Resolution, preset, 2 limit switches, 8 CAMS, baud rate, CAN-Identifier, bootloader, transmission modes: polled, cyclic, sync |
| Transmission Rate | min. 20 kBaud, max. 1 MBaud |
| Interface Cycle Time | ≥ 1 ms |
| Output Driver | Transceiver (ISO 11898), Galvanically Isolated by Opto-Couplers |
| Current Consumption | ≤ 70 mA @ 10 V DC, ≤ 50 mA @ 24 V DC |
| Reverse Polarity Protection | Yes |
| Short Circuit Protection | Yes |
| MTTF | 240 years @ 40 °C |

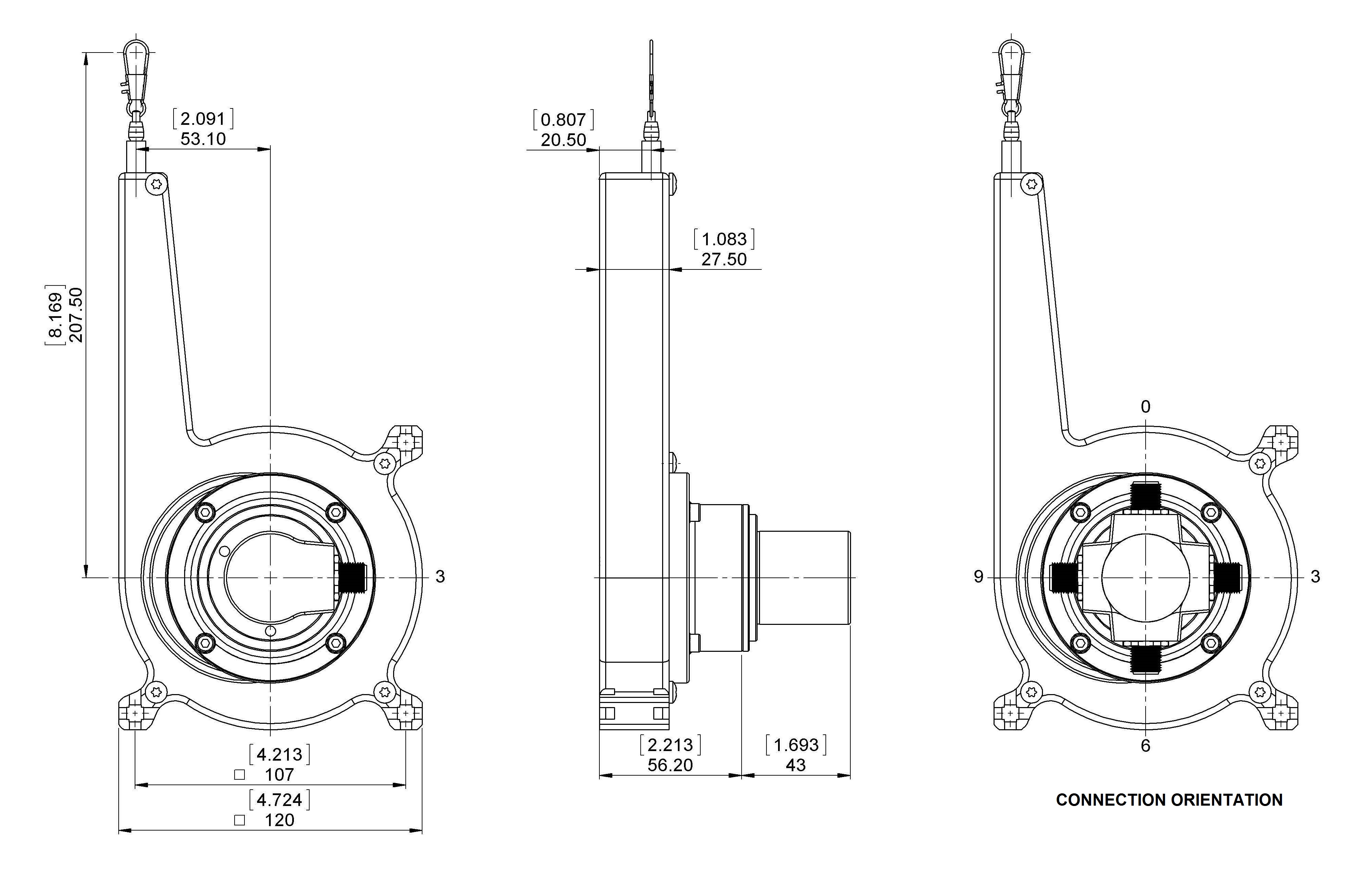

| Connection Orientation | Radial |
| Connection Orientation (w.r.t Draw Wire) | Radial 6 |
| Connector | M12, Male, 5 pin, a coded |
| Connection Type | Cable / Connector |
| Product Life Cycle | Established |
| Signal | Pin Number |
|---|---|
| Power Supply | 2 |
| GND | 3 |
| CAN High | 4 |
| CAN Low | 5 |
| CAN GND | 1 |
