| Interface | Incremental RS422 |
| Pulses per Revolution | 0100, 0200, 0250, 0360, 0400, 0500, 0512 |
| Output Incremental | A, /A, B, /B, Z, /Z |
| Configuration Remark | PPR < 1000 |
| Output Driver | RS 422 (TTL) |
| Output Voltage High Level RS422 (TTL) | Condition: current max. -20 mA, min. 2.4 V; condition: no... |
| Output Voltage Low Level RS422 (TTL) | Condition: current max. +20mA, max. 0.4 V; condition: no ... |
| Output Rise Time | 110 ns |
| Outfall Fall Time | 100 ns |
| Maximum Switching Current | 8 mA per Channel |
| Connector | Latching Pin Connector, 10 pin |
| Supply Voltage | 4.5 – 5.5 VDC |
| Current Consumption | CPR < 500, no load: typ. 29 mA, max. 36 mA, CPR ≥ 500, no load: typ. 56 mA, max. 65 mA |
| Power Consumption | ≤ 0.7 W |
| Reverse Polarity Protection | No |
| Short Circuit Protection | No |
| Max Load Capacitance | 100 pF |
| Max. Permissable Electric Speed | minimum value of [ (18*10^6)/PPR and 60000 ] 1/min |
| EMC Electrostatic Discharge | ± 4 kV, IEC 61000-4-2 |
| MTTF | 6404 years @ 20°C and 40 % relative humidity |
| Technology | Optical |
| Resolution Singleturn | Incremental without Index (Kit) |
| Resolution Multiturn | 0 bit |
| Accuracy (INL) | ±0.16° |

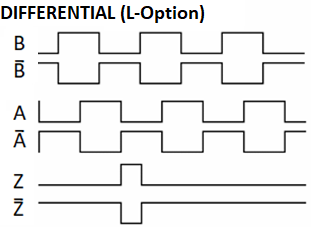

| Phase Angle | Pulse diagram Z: 90° ±30° |
| Duty Cycle | Pulse diagram X,Y: 180°±30° |
| Protection Class (Housing) | IP40 |
| Min Temperature | -40 °C (-40 °F) |
| Max Temperature | +100° C (+212° F) |
| Top Shield | Screwed |
| Housing Material | Polycarbonate 20% Glass Fiber Filled |
| Housing Coating | No Coating |
| Shaft Type | Hub |
| Kit Shaft Dimension | 8 mm |
| Shaft Material | Aluminum |
| Shaft Fastening Options | Shaft Set Screw |
| Maximum Axial / Radial Misalignment | ± 0.25 mm / ± 0.05 mm |
| Disk Radial Position Tolerance | min. ± 0.127 mm, gap set by standard spacer tool |
| Weight | 0 (0.00 lb) |
| Rotor Inertia | ≤ 0.56 gcm² [≤ 3.06 x 10^-3 oz-in²] |
| Vibration Resistance | ≤ 20 g (5 Hz – 2000 Hz) |
| Tooling | 1-4pcs = One spacer, hex and centering tool per encoder (PO3 |
| Approval | No CE |
| Product Life Cycle | New |
| Signal | Pin Number |
|---|---|
| Not Connected | 1 |
| Power Supply | 2 |
| GND | 3 |
| Not Connected | 4 |
| /A | 5 |
| A | 6 |
| /B | 7 |
| B | 8 |
| Not Connected | 9 |
| Not Connected | 10 |
