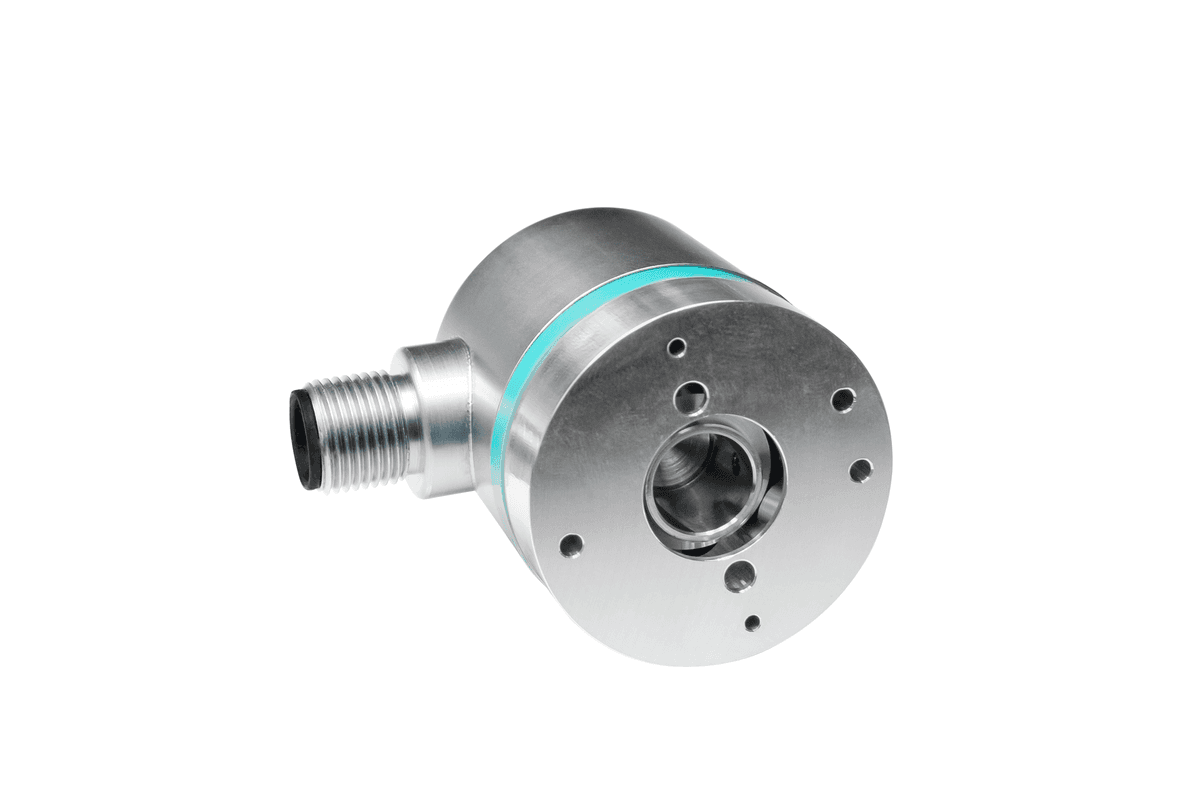

| Interface | SSI with Preset |
| Manual Functions | Preset via cable or connector |
| Interface Cycle Time | ≥ 50 µs |
| SSI Format | 8x"0" + MT Resolution quantity of digits + ST Resolution quantity of digits |
| Diagnostics | Error and Warning Bits, Register Values |
| Programming Functions | Via config pin: calibration, WIEGAND sensor test, filter selection, preset value, temperature |
| Output Driver | RS422 |
| Connector | M12, Male, 8 pin, a coded |
| Supply Voltage | 4.75 – 15 VDC |
| Current Consumption | Typical 32 mA, max 35 mA @5V DC |
| Power Consumption | ≤ 0.3 W |
| Start-Up Time | < 100 ms |
| Clock Input | RS422 |
| Clock Frequency | 300 kHz - 1 MHz |
| Reverse Polarity Protection | Yes |
| Short Circuit Protection | Yes |
| EMC: Emitted Interference | The kit encoder is a sub-assembly and not to be considered an independent system. Therefore, compliance with CE requirements has to be ensured by the integrator for the overall set-up. |
| Max. Permissible Electric Speed | 12000 1/min |
| EMC: Noise Immunity | The kit encoder is a sub-assembly and not to be considered an independent system. Therefore, compliance with CE requirements has to be ensured by the integrator for the overall set-up. |
| MTTF | 20 years @ 105 °C |
| Technology | Magnetic TMR |
| Resolution Singleturn | 10 bit |
| Resolution Multiturn | 16 bit |
| Accuracy (INL) | ±0.0878° (≤12 bit) measured after calibration at room temp. |
| Code | Binary |
| Protection Class (Housing) | IP40 |
| Min Temperature | -40 °C (-40 °F) |
| Max Temperature | +85 °C (+185 °F) |
| Top Shield | Screwed |
| Shaft Type | Hub |
| Kit Shaft Dimension | 10 mm |
| Shaft Material | Stainless Steel V4A (1.4404, 316L) |
| Shaft Fastening Options | Shaft Set Screw |
| Maximum Axial / Radial Misalignment | Static ± 0.3 mm /± 0.5 mm; Dynamic ± 0.1 mm /± 0.2 mm |
| Weight | 175 g (0.39 lb) |
| Rotor Inertia | ≤ 10 gcm² [≤ 0.06 oz-in²] |
| Shock Resistance | ≤ 200 g (half sine 6 ms, EN 60068-2-27) |
| Permanent Shock Resistance | ≤ 20 g (half sine 16 ms, EN 60068-2-29) |
| Vibration Resistance | ≤ 30 g (10 Hz – 1000 Hz, EN 60068-2-6) |
| Approval | No CE |
| Product Life Cycle | New |
| Signal | Pin Number |
|---|---|
| GND | 1 |
| Preset | 7 |
| Config | 8 |
| Data+ | 5 |
| Data- | 6 |
| Clock- | 4 |
| Clock+ | 3 |
| Power Supply | 2 |
