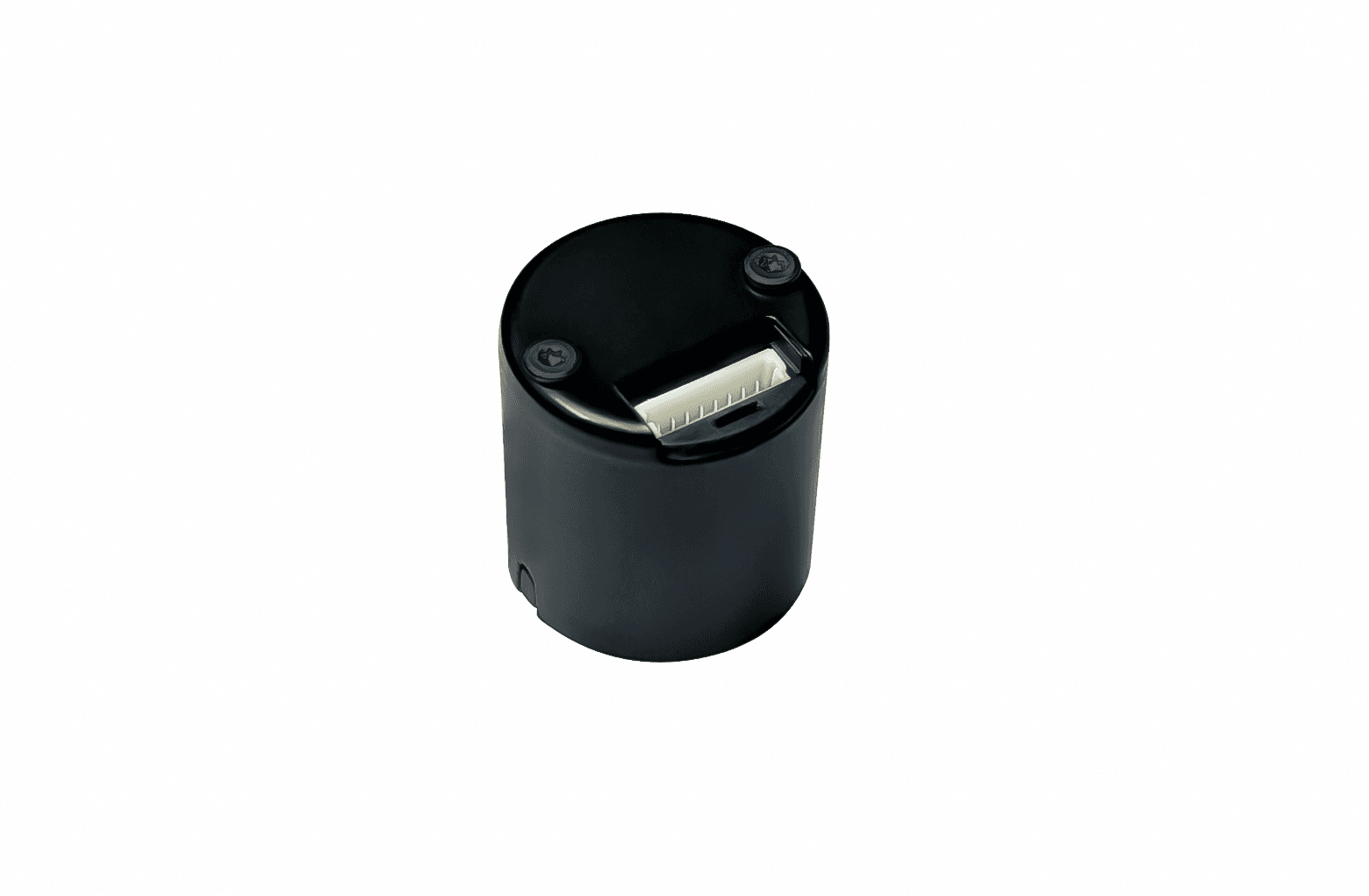

| Interface | SSI with Preset |
| Manual Functions | Preset via cable or connector |
| Interface Cycle Time |
| SSI Format | 8x"0" + MT Resolution quantity of digits + ST Resolution quantity of digits |
| Diagnostics | Error and Warning Bits, Register Values |
| Programming Functions | Via config pin: calibration, WIEGAND sensor test, filter selection, preset value, temperature |
| Housing Remark | Standard |
| Output Driver | RS422 |
| Connector | PCB Connector, male, JST-SR |
| Supply Voltage | 4.5 – 5.5 VDC |
| Current Consumption | 57 mA @5V DC |
| Power Consumption | ≤ 0.3 W |
| EMC: Emitted Interference | The kit encoder is a sub-assembly and not to be considered an independent system. Therefore, compliance with CE requirements has to be ensured by the integrator for the overall set-up. |
| EMC: Noise Immunity | The kit encoder is a sub-assembly and not to be considered an independent system. Therefore, compliance with CE requirements has to be ensured by the integrator for the overall set-up. |
| Technology | Magnetic TMR |
| Resolution Singleturn | 9 bit |
| Resolution Multiturn | 16 bit |
| Accuracy (INL) | ±0.0878° (≤12 bit) measured after calibration at room temp. |
| Code | Binary |
| Protection Class (Housing) | IP30 |
| Min Temperature | -40 °C (-40 °F) |
| Max Temperature | +105 °C (221 °F) |
| Top Shield | Screwed |
| Housing Material | Steel |
| Housing Coating | e-coating (KTL) |
| Shaft Type | Hub |
| Shaft Material | Brass |
| Shaft Fastening Options | Shaft Pressed |
| Weight | 17 g (0.04 lb) |
| Shock Resistance | ≤ 200 g (half sine 6 ms, EN 60068-2-27) |
| Vibration Resistance | ≤ 20 g (10 Hz – 2000 Hz, EN 60068-2-6) |
| Approval | No CE |
| Product Life Cycle | Lab Sample |
