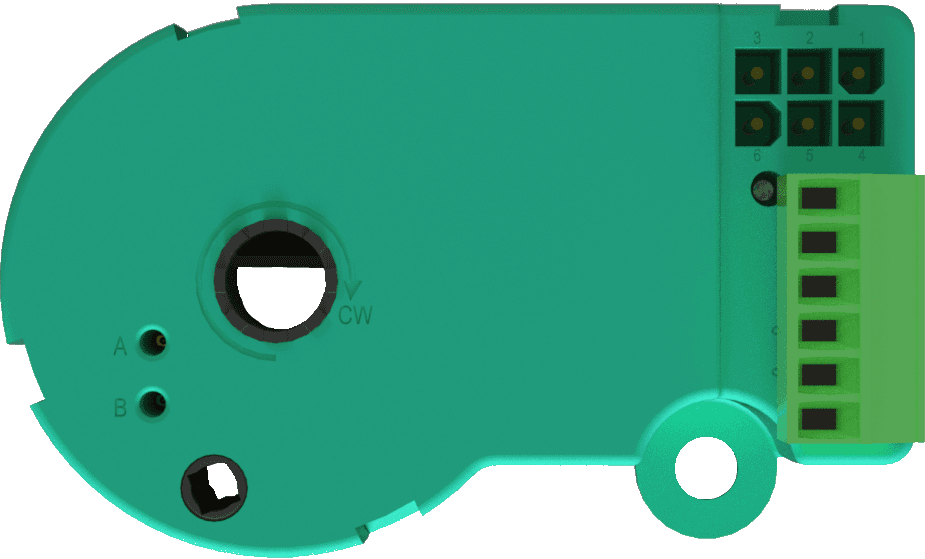

| Interface | RS485; asynchronous; half-duplex, selectable |
| Programming Functions | Programmable gear ratio & programmable protocol: Default gear ratio: max. scale, (13 bit) resolved in four revolutions. --> Can also be changed in 13bit resolved in 2 or 1 revolution(s) or 1/4 revolution. Programmable Protocol: Preset DES B; can be changed to DES A or FRABA protocol. |
| Transmission Rate | DCx |
| Housing Remark | Surface Mounting inside Door Operator - External enclosure on demand |
| Output Driver | RS485 with Safety Protocol FRABA |
| Connector |
| Receptable for TE™ 172168 MATE-N-LOK or compatible |
| Supply Voltage | 7 – 24 VDC |
| Power Consumption | ≤ 0.3 W |
| Reverse Polarity Protection | Yes |
| Short Circuit Protection | Yes |
| EMC: Emitted Interference | EN IEC 61000-6-4:2019 |
| EMC: Noise Immunity | EN IEC 61000-6-2:2019 |
| Technology | Magnetic |
| Resolution Singleturn | 13 bit |
| Resolution Multiturn | 4 bit |
| Accuracy (INL) | <= 1.0° (Redundand Encoder) |
| Code | 0 DCS Encoder |
| Protection Class (Housing) | IP20 |
| Max Temperature | +80 °C (+176 °F) |
| Humidity | 100%, liquid state |
| Top Shield | Preassembled |
| Housing Material | Fibre-Reinforced PBT (green) |
| Housing Coating | No Coating |
| Shaft Type | Through hollow shaft (half moon) |
| Kit Shaft Dimension | Through hollow shaft (D8-5 half moon) |
| Shaft Material | POM |
| Shaft Fastening Options | Not Applicable (No Shaft) |

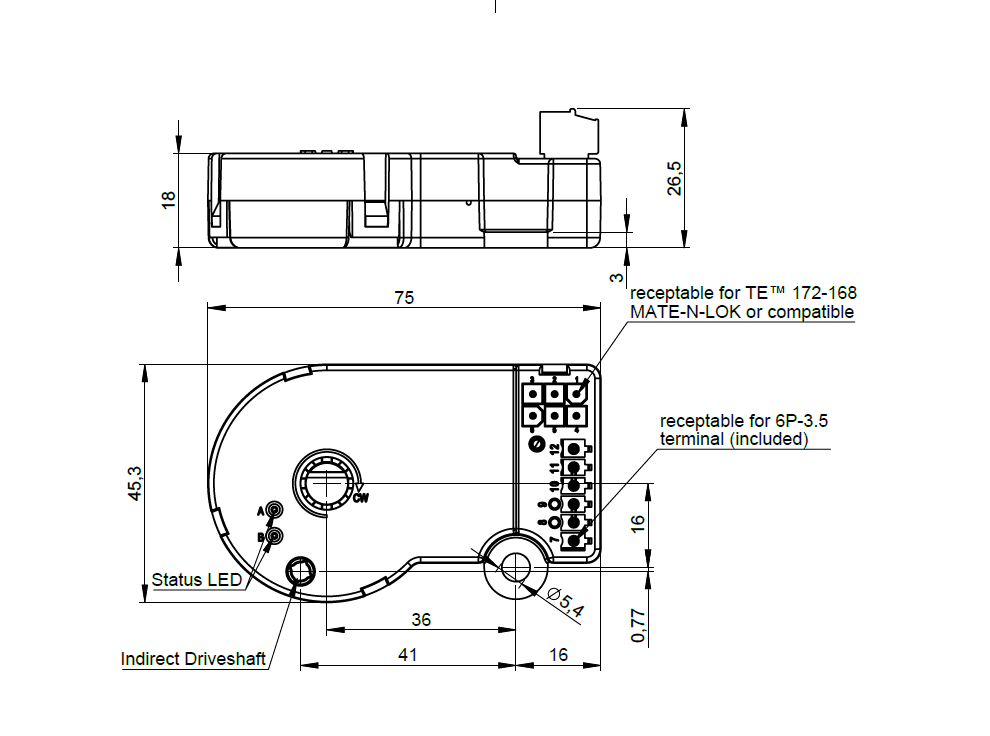

| Length | 75 mm (2.95") |
| Weight | 50 g (0.11 lb) |
| Shock Resistance | ≤ 10 g (half sine 16 ms, EN 60068-2-27) |
| Product Life Cycle | Prototype |
