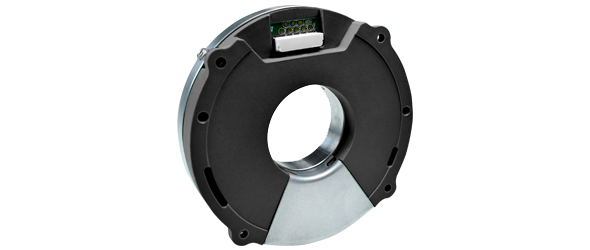

| Interface | BiSS C with Preset |
| Interface Cycle Time | ≥ 18 µs |
| Diagnostics | Stator-Rotor Air Gap and Start-up Procedure Check |
| Programming Functions | Via register communication: Wiegand sensor test, preset value and multiturn reinitialization |
| Cycle of Parameter Saving | 10 000 |
| Interface Remark | Binary |
| Output Driver | RS422 |
| Connector | JST SM10B-GHS-TB (JST) |
| Supply Voltage | 4.5 - 26.4 VDC |
| Current Consumption | Typical 200mA @ 5V (no load) |
| Start-Up Time | < 1 s |
| Clock Input | RS422 |
| Clock Frequency | 80 kHz - 10 MHz |
| Reverse Polarity Protection | Yes |
| Short Circuit Protection | Yes |
| EMC: Emitted Interference | DIN EN 61000-6-4, customer shall verify in complete system |
| Max. Permissible Electric Speed | 6000 1/min |
| EMC: Noise Immunity | The kit encoder is a sub-assembly and not to be considered an independent system. Therefore, compliance with CE requirements has to be ensured by the integrator for the overall set-up. |
| MTTF | 105 years @ 60 °C |
| Technology | Capacitive + Magnetic |
| Resolution Singleturn | 18 bit |
| Resolution Multiturn | 16 bit |
| Accuracy (INL) | ±0.02° |
| Code | Binary |
| Protection Class (Housing) | IP20 |
| Min Temperature | -40 °C (-40 °F) |
| Max Temperature | +105 °C (221 °F) |
| Top Shield | Screwed |
| Housing Material | Plastic / Steel |
| Housing Coating | Zinc Plated |
| Shaft Type | Hollow |
| Shaft Material | Steel |
| Shaft Fastening Options | Shaft Set Screw |
| Maximum Axial / Radial Misalignment | ± 0.1 mm / ± 0.2 mm |
| Stator-Rotor Air Gap | 0.7 mm |
| Weight | 30 g (0.07 lb) |
| Rotor Inertia | ≤ 1000 gcm² [≤ 5.5 oz-in²] |
| Shock Resistance | ≤ 200 g (half sine 11 ms, EN 60068-2-27) |
| Permanent Shock Resistance | ≤ 20 g (half sine 11ms, ≤5 g (half sinus 30 ms) |
| Vibration Resistance | ≤ 20 g (20 Hz – 2000 Hz, EN 60068-2-6) |
| Approval | No CE |
| Product Life Cycle | New |

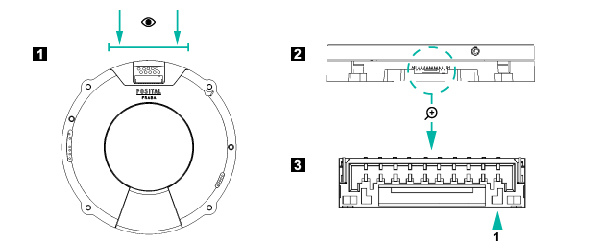

| Signal | Pin Number |
|---|---|
| Data- | 1 |
| Data+ | 2 |
| Do Not Connect | 3 |
| Preset | 4 |
| Clock+ | 5 |
| Clock- | 6 |
| Power Supply | 7 |
| GND | 8 |
| Do Not Connect | 9 |
| Diagnostic | 10 |
