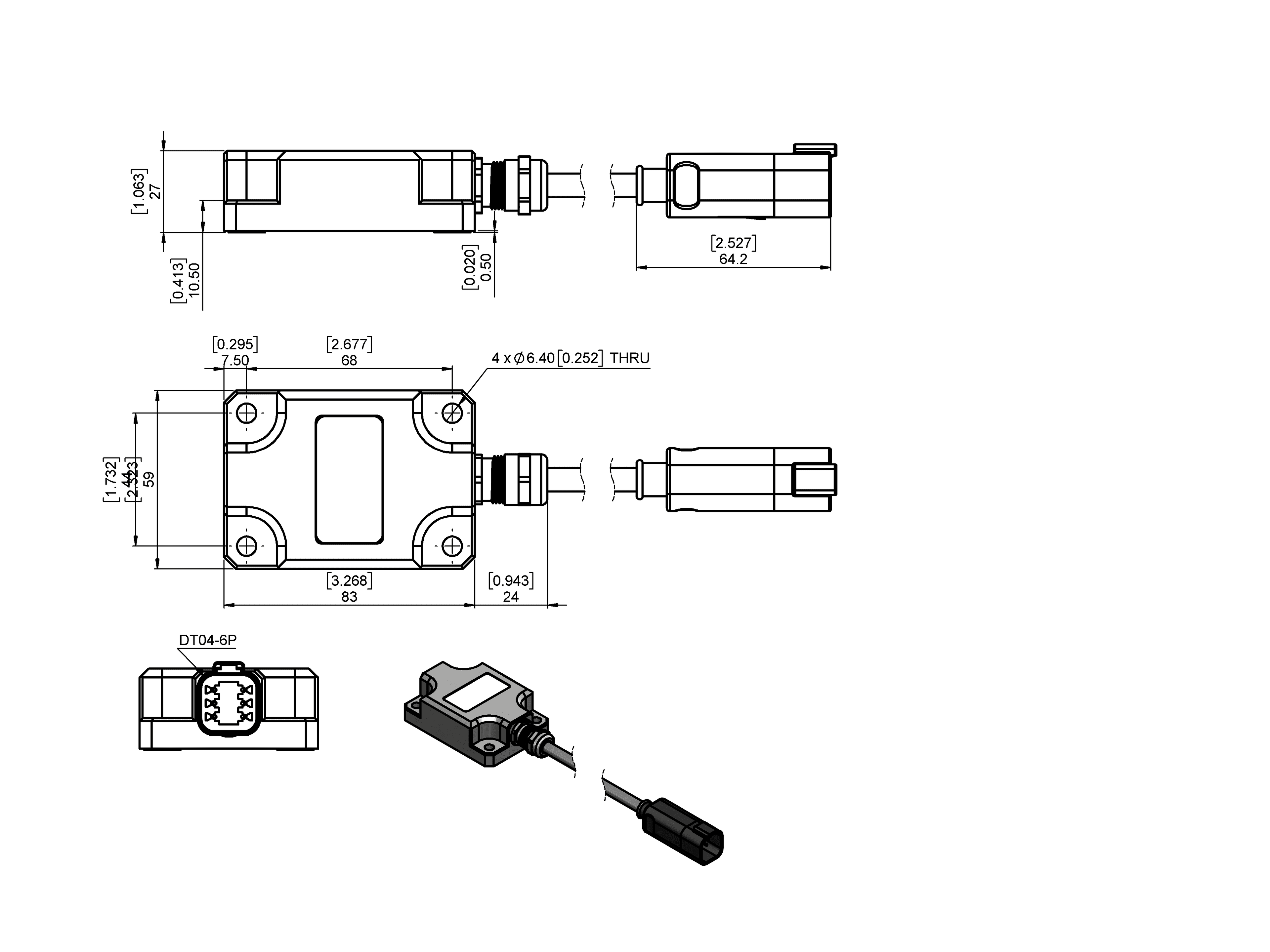

| Application | Dynamic Inclinometer 2-Axes with Pitch and Roll |
| Measurement Range | Pitch ± 85°, Roll ± 180° |
| Accuracy (INL) | ±0.30° |
| Resolution | 0.01° |
| Repeatability | ≤0.05° |
| Dynamic Accuracy | ±0.50° |
| Cycle Time Base Sensor | 1 ms |
| Hysteresis | ≤0.05° |
| Device Orientation | Horizontal |
| Measurement Range Accelerometer | ±8 g |
| Measurement Range Gyroscope | ±1000 °/s |
| Supply Voltage | 9 – 30 VDC |
| Current Consumption | ≤ 65 mA @ 10 V DC, ≤ 60 mA @ 24 V DC |
| EMC: Emitted Interference | EN IEC 61000-6-4:2020-09; EN IEC 6100-6-3:2022-06; ANSI C63.4a:2017; FCC Title 47 CFR Part 15B (2025-01); ICES-003:Issue 7 (2020-10) |
| EMC: Noise Immunity | EN 61000-6-2:2019-11; EN 61326-1:2022-11 |
| EMC: Automotive | E1 ECE - R 10, 07; EN 13309:2010-12; EN 13766-1:2019-04; |
| Reverse Polarity Protection | Yes |
| Short Circuit Protection | Yes |
| MTTF | 440 years @ 40 °C |
| Min Temperature | -40 °C (-40 °F) |
| Max Temperature | +85 °C (+185 °F) |
| Storage Temperature | -40 °C (-40 °F) – +85 °C (+185 °F) |
| Temperature Gradient | 0.008°/ K |
| Protection Class (Housing) | IP68/IP69K |
| Shock Resistance | ≤ 100 g (half sine 6 ms, EN 60068-2-27) |
| Vibration Resistance | 1.5 mm (10 Hz – 58 Hz) & ≤ 20 g (58 Hz to 2000 Hz) |
| Housing Material | Stainless Steel V4A (1.4404, 316 L) |
| Potting Material | None |
| Weight | 265 g (0.58 lb) |
| Interface | CANopen |
| Settling Time | min 30 ms; default 200 ms (dependent on filter settings) |
| Output Driver | Transceiver (ISO 11898) |
| Profile | DS-410 |
| Transmission Rate | min. 20 kBaud, max. 1 MBaud |
| Default Transmission Rate | 125 kBaud |
| Default Node ID | 1h |
| Connection Type | Deutsch DT04-6P + 0.3m Cable |
| Connector | Deutsch DT04-6P |
| Product Life Cycle | New |
| Approval | CE + E1 |
| Signal | Connector | Pin Number |
|---|---|---|
| CAN High | 1 | 1 |
| CAN Low | 1 | 2 |
| Power Supply | 1 | 3 |
| GND | 1 | 4 |
| Not Connected | 1 | 5 |
| Not Connected | 1 | 6 |
