| Application | 1-Axis Position Monitoring and Leveling |
| Measurement Range | 180° |
| Accuracy (INL) | ±0.10° |
| Resolution | 0.01° |
| Device Orientation | Vertical |
| Supply Voltage | 10 - 30 VDC @ loads < 270 Ω, 15 - 30 VDC @ loads < 500 Ω |
| Power Consumption | ≤ 0.7 W |
| EMC: Emitted Interference | DIN EN 61000-6-4 |
| EMC: Noise Immunity | DIN EN 61000-6-2 |
| Reverse Polarity Protection | Yes |
| Short Circuit Protection | Yes |
| MTTF | 350 years @ 40 °C |
| Storage Temperature | -40 °C (-40 °F) – +85 °C (+185 °F) |
| Temperature Gradient | 0.004°/ K |
| Storage Temperature | -40 °C (-40 °F) – +85 °C (+185 °F) |
| Temperature Gradient | 0.004°/ K |
| Protection Class (Housing) | IP68/IP69K |
| Shock Resistance | ≤ 100 g (half sine 6 ms, EN 60068-2-27) |
| Vibration Resistance | 1.5 mm (10 Hz – 58 Hz) & ≤ 20 g (58 Hz to 2000 Hz) |
| Min Temperature | -40 °C (-40 °F) |
| Max Temperature | +80 °C (+176 °F) |
| Housing Material | Die-Cast Aluminum Alloy |
| Potting Material | PUR (Polyurethane) |
| Weight | 370 g (0.82 lb) |
| Interface | Analog#Current 4 – 20 mA + RS232 |
| Teach In | Zero Positioning, Inverse Direction, Elevation Range Programming |
| Settling Time | 125 ms |

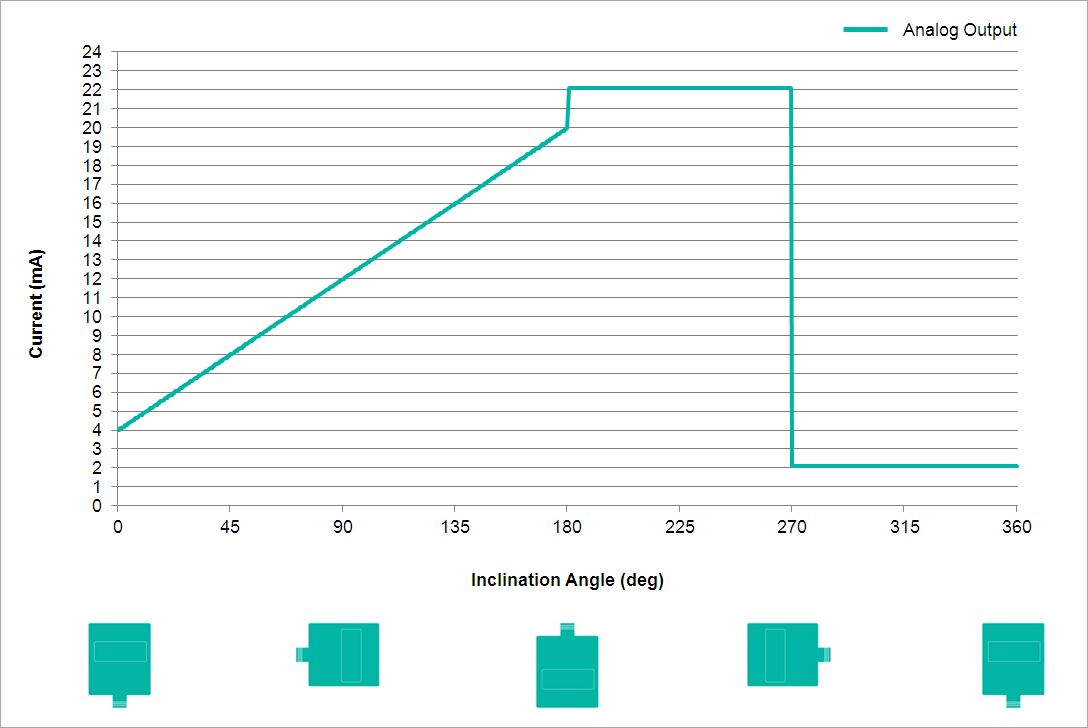

| Output Type | Current 4 – 20 mA |
| Max Load Resistance | 270 Ω @ 10 V DC (500 Ω @ 15 V DC) |
| Transmission Rate | RS232: min. 1200 Baud; max. 115200 Baud |
| Default Transmission Rate | RS232: 9600 Baud |
| Linearity | ± 0.02% |
| Connection Type | Cable 1 m PVC |
| Cable Length | 1 m [39"] |
| Wire Cross Section | 0.34 mm² / AWG 22 |
| Material / Type | PUR / PU |
| Cable Diameter | 7.5 mm (0.30 in) |
| Minimum Bend Radius | 56 mm (2.2") fixed, 75 mm (3") flexing |
| Product Life Cycle | Discontinued |
| Approval | CE + cULus |
| Signal | Color |
|---|---|
| Power Supply | Red |
| GND | Yellow |
| Z-Axis, Current Output | Green |
| Not Connected | Blue |
| RxD | Gray |
| TxD | Pink |
| Set1 | Brown |
| Set2 | White |
| Shielding | Shield |
