| Application | 1-Axis Position Monitoring and Leveling |
| Measurement Range | 120° |
| Accuracy (INL) | ±0.10° |
| Resolution | 0.01° |
| Cycle Time Base Sensor | 500 µs |
| Device Orientation |
| Vertical |
| Supply Voltage | 10 – 30 VDC |
| Power Consumption | ≤ 0.7 W |
| EMC: Emitted Interference | DIN EN 61000-6-4 |
| EMC: Noise Immunity | DIN EN 61000-6-2 |
| Reverse Polarity Protection | Yes |
| Short Circuit Protection | Yes |
| MTTF | 400 years @ 40 °C |
| Min Temperature | -30 °C fixed (-22 °F), -5 °C flexible (+23 °F) |
| Max Temperature | +80 °C (+176 °F) |
| Storage Temperature | -40 °C (-40 °F) – +85 °C (+185 °F) |
| Temperature Gradient | 0.004°/ K |
| Protection Class (Housing) | IP66/IP67 |
| Shock Resistance | ≤ 100 g (half sine 6 ms, EN 60068-2-27) |
| Vibration Resistance | 1.5 mm (10 Hz–58 Hz) & ≤ 20 g (58 Hz to 2k Hz) EN 60068-2-6 |
| Housing Material | PBT GF (green) |
| Potting Material | None |
| Weight | 562 g (1.24 lb) |

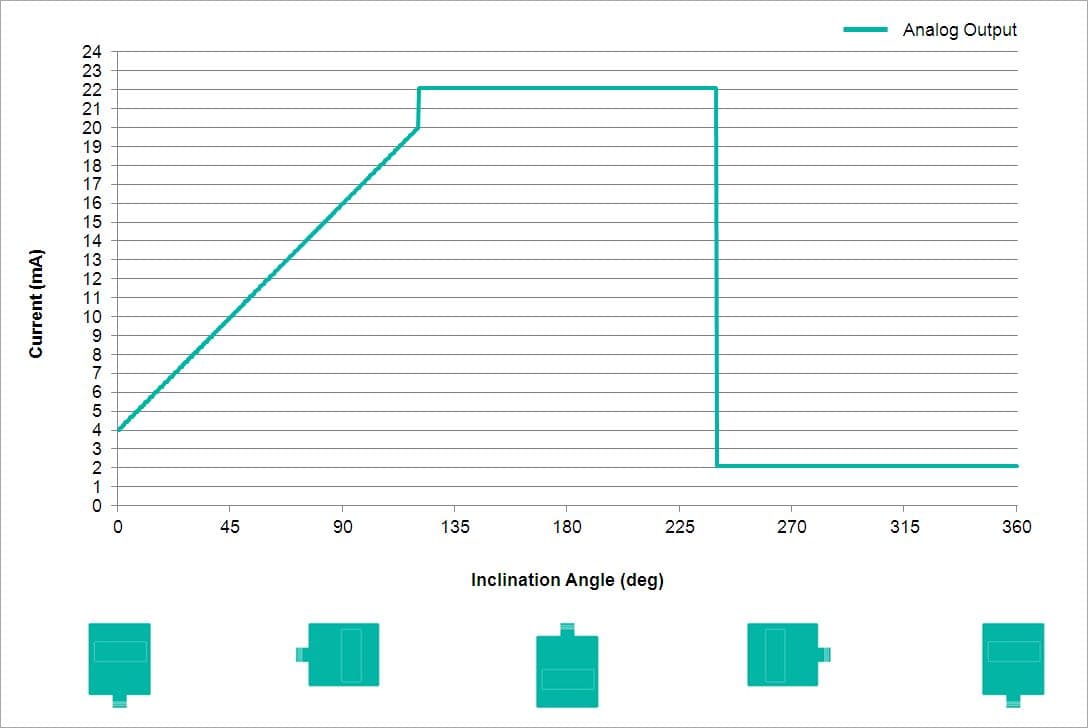

| Interface | Analog#Current 4 – 20 mA |
| Teach In | Preset |
| Settling Time | min 30 ms; default 200 ms (dependent on filter settings) |
| Output Type | Current 4 – 20 mA |
| Max Load Resistance | 270 Ω @ 10 V DC (500 Ω @ 15 V DC) |
| Linearity | ± 0.02% |
| Connection Type | Cable 10 m PVC |
| Cable Length | 10 m [394"] |
| Wire Cross Section | 0.14 mm² / AWG 26 |
| Material / Type | PVC |
| Cable Diameter | 6 mm (0.24 in) |
| Minimum Bend Radius | 46 mm (1.81") fixed, 61 mm (2.4") flexing |
| Product Life Cycle | New |
| Approval | CE + cULus |
