| Application | 1-Axis Position Monitoring and Leveling |
| Measurement Range | 90° |
| Accuracy (INL) | ±0.10° |
| Resolution | 0.01° |
| Device Orientation | Vertical |
| Supply Voltage | 10 – 30 VDC |
| Power Consumption | ≤ 0.7 W |
| EMC: Emitted Interference | DIN EN 61000-6-4 |
| EMC: Noise Immunity | DIN EN 61000-6-2 |
| Reverse Polarity Protection | Yes |
| Short Circuit Protection | Yes |
| MTTF | 400 years @ 40 °C |
| Min Temperature | -40 °C (-40 °F) |
| Max Temperature | +85 °C (+185 °F) |
| Storage Temperature | -40 °C (-40 °F) – +85 °C (+185 °F) |
| Temperature Gradient | 0.004°/ K |
| Temperature Gradient | 0.004°/ K |
| Protection Class (Housing) | IP68/IP69K |
| Shock Resistance | ≤ 100 g (half sine 6 ms, EN 60068-2-27) |
| Vibration Resistance | 1.5 mm (10 Hz – 58 Hz) & ≤ 20 g (58 Hz to 2000 Hz) |
| Housing Material | Aluminum |
| Potting Material | PUR (Polyurethane) |
| Weight | 200 g (0.44 lb) |
| Interface | Analog#Voltage 0-5 V + RS232 |
| Teach In | Zero Positioning, Inverse Direction, Elevation Range Programming |
| Settling Time | 125 ms |

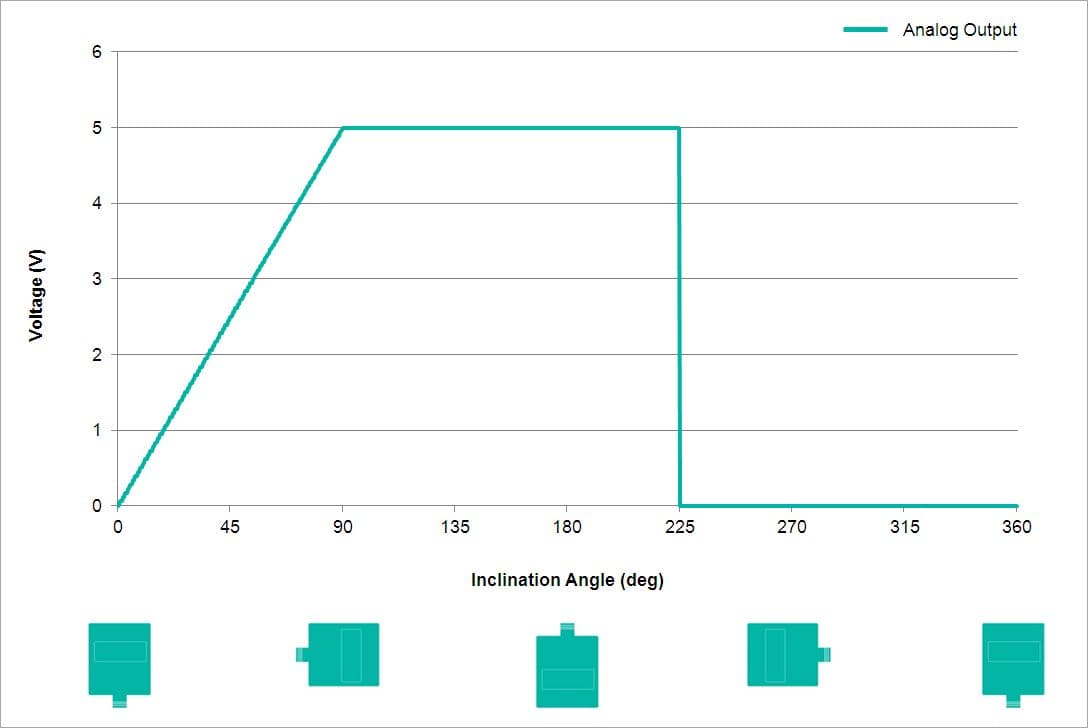

| Output Type | Voltage 0 – 5 V |
| Min. Load Resistance | 5 kΩ |
| Transmission Rate | RS232: min. 1200 Baud; max. 115200 Baud |
| Default Transmission Rate | RS232: 9600 Baud |
| Linearity | ± 0.02% |
| Connection Type | Connector M12 (8 pin) |
| Connector | M12, Male, 8 pin, a coded |
| Product Life Cycle | Discontinued |
| Approval | CE + cULus |
| Signal | Pin Number |
|---|---|
| Power Supply | 1 |
| GND | 4 |
| Z-Axis, Voltage Output | 5 |
| Set1 | 6 |
| Set2 | 8 |
| RxD | 2 |
| TxD | 3 |
| Not Connected | 7 |
