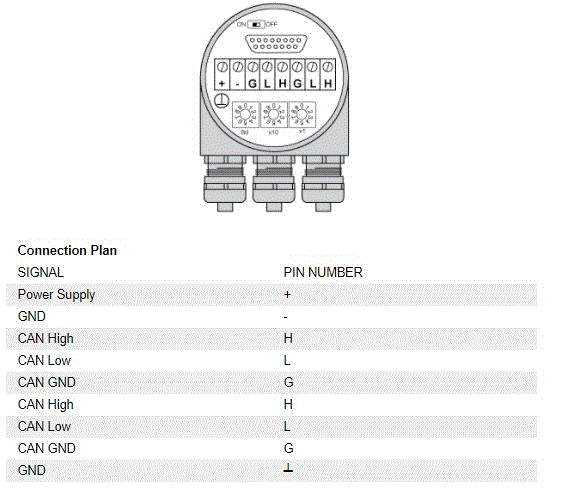

| Intro | For OCD-D2C1B-xxxx-xxxx-H2P |
| Interface | DeviceNet |
| Manual Functions | Address selector switch 0-99 and terminal resistor (with connection cap) |
| Display LEDs | 2 color status LED |
| Name | 10059651- Connection cap DeviceNet not cert. AH58-D1DA-2PG |
| Connection Type Web | 2 x Cable Gland |
| Connection Cap Material | Aluminum |
| Connection Type | 2 x Cable Gland |
| Compatible cable diameter | 5 ... 9 mm |
| Connection Cap Weight | 195 g |
| Connection Cap Length | 28 mm |
| Product Life Cycle | Established |
