| Intro | For OCD-CAA1B-xxxx-xxxx-H2M |

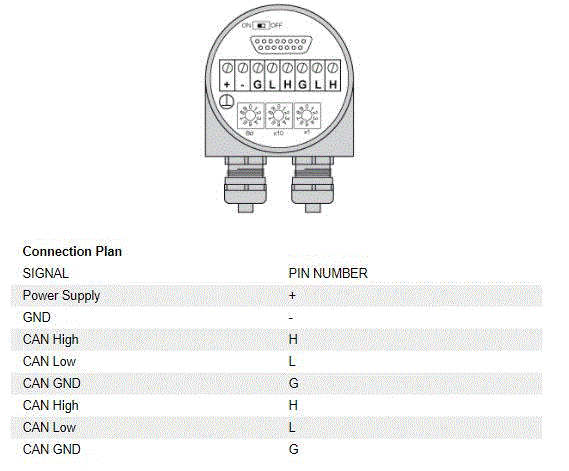

| Name | 10059531- Connection cap CANopen AH58-D1CA-2M20 |
| Interface | CANopen |
| Manual Functions | Address selector switch 0-99 and terminal resistor (with connection cap) |
| Display LEDs | 2 color status LED (14 Status information) |
| Connection Type Web | 2 x M20 Cable Glands |
| Connection Cap Material | Aluminium |
| Connection Type | 2 x M20 Cable Glands |
| Compatible cable diameter | 8 ... 12 mm |
| Connection Cap Weight | 205 g |
| Connection Cap Length | 29 mm |
| Product Life Cycle | Established |
