| Intro | For OCD-DPC1B-xxxx-xxxx-H3P |

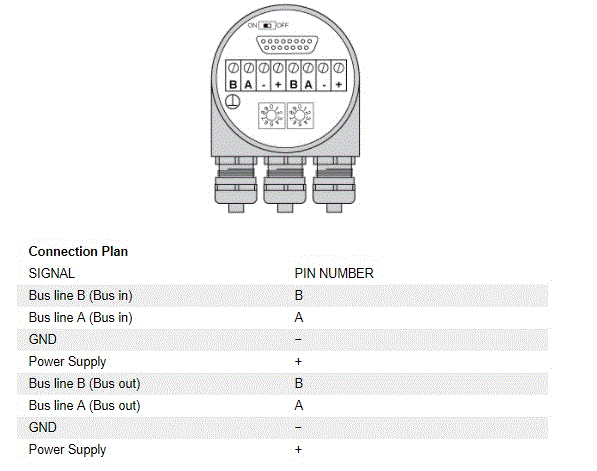

| Name | 10059552- Connection cap Profibus AH58-C1DP-3PG |
| Interface | Profibus DP |
| Manual Functions | Address selector switch 0-99 and terminal resistor (with connection cap) |
| Display LEDs | 2 color status LED (7 Status information) |
| Connection Cap Type | Removable for easy replacing encoder without new installation of cable, Rotary switches with visible node number, No active components, Terminal resistor switch cut the outgoing bus too, Big spring clips |
| Connection Type Web | 3 x Cable Gland |
| Connection Cap Material | Aluminium |
| Connection Type | 3 x Cable Gland |
| Compatible cable diameter | 5 ... 9 mm |
| Connection Cap Weight | 160 g |
| Connection Cap Length | 28 mm |
| Product Life Cycle | Established |
