| Intro | Draw Wires or Cable Pull adapters when combined with encoders enable to measure the linear position accurately and also communicate the position over the interface of your choice. All POSITAL draw wire adapters use a stainless steel measuring wire |
| Flange Type | Synchro - Solid Shaft |
| Flange Diameter | 58 mm |
| Measurement Range | Draw Wire#3 m – 6.9 m (9.84' – 22.63') |
| Accuracy | ±0.02 % Full Scale Output |
| Repeatability | ±0.002 % Full Scale Output |
| Measuring Length | 5.00 m (16.40') |
| Draw Wire Enclosure | Draw Wire Enclosure#Extruded Metal |
| Draw Wire Housing Material | Aluminum |
| Wire Material | Coated Polyamide Stainless Steel |
| Wire Diameter | 1.00 mm |
| Length per Revolution | 315 mm |
| Max. Speed of Wire Displacement | 2.0 m / s |
| Max Extension Force | 16.0 N |
| Max. Angular Acceleration | 5.0 g |
| Min Retraction Force | 4.0 N |
| Wire Mounting | Eyelet |
| Shaft Diameter | 6 mm |
| Max. Wire Exit Angle | ±3° |
| Weight | 1200 g |
| Operating Temperature | -40°C to 94°C / -40°F to 201°F |

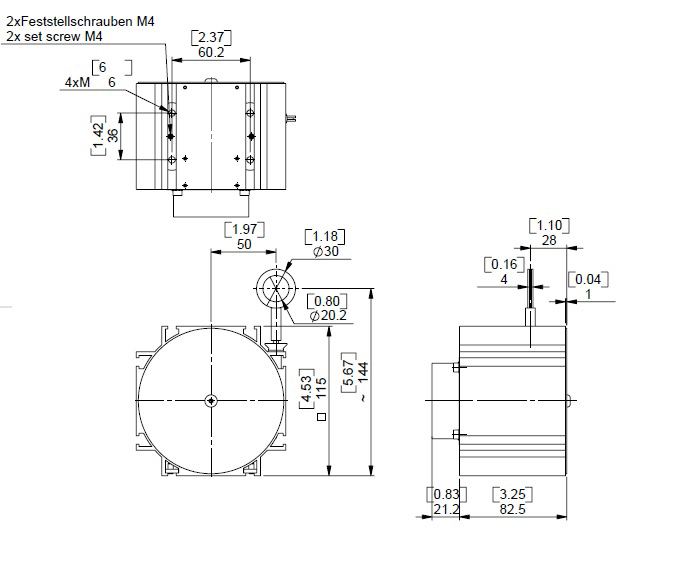

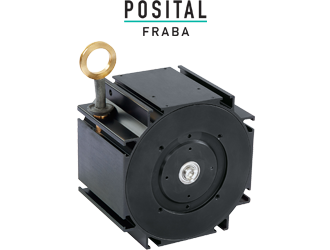

| Name | 10048510-Draw-Wire-WDS-5000-P115-M |
