Adapter flanges

Mounting Bracket

  Name Compatible Flange Type Compatible Flange Diameter
angled_pic L Mounting Bracket w/ screws Clamping - Solid Shaft 58 mm
mgy58_pic Mounting Bracket for Synchro Flange w/ fixtures Synchro - Solid Shaft 58 mm
bracket_spring_clamping_flange_2 Mounting Bracket Spring Loaded f. Clamping Flange Clamping - Solid Shaft 58 mm
mowi120 Mounting Bracket for Clamping Flange w/ fixtures Clamping - Solid Shaft 58 mm
bracket_spring_clamping_flange_2 Mounting Bracket Spring Loaded f. Synchro Flange Synchro - Solid Shaft 36mm
picture_bracket_spring_clamping_flange_1 Spring Loaded Pivot Arm 58mm Clamping - Solid Shaft 58mm
picture_bracket_spring_clamping_flange_1 Spring Loaded Pivot Arm 36mm Synchro - Solid Shaft 36mm

Adapter Flange

  Name
picture_af_58c_65_m4_small Adapter Flange 58S-100 ø58mm Synchro to Ø100mm
picture_af_58c_65_m4_small Adapter Flange 58C-80 ø58mm Clamping to Ø80mm
picture_af_58c_65_m4_small Adapter Flange 58C-78 ø58mm Clamping to Ø78mm
picture_af_58c_25in_square_small Adapter Flange 58C-2.5in Square ø58mm Clamping to 63.5mm/2.5in Square
picture_af_58c_90_small Adapter Flange 58C-90 ø58mm Clamping to Ø90mm
picture_af_58c_90_small Adapter Flange 58C-90 VA ø58mm Clamping to Ø90mm
picture_af_58c_67_small Adapter Flange 58C-67 ø58mm Clamping to Ø67mm
picture_af_58s_116_small Adapter Flange 58S-116 ø58mm Synchro to Ø116mm
picture_af_58c_65_m4_small Adapter Flange 58C-65 (M4) ø58mm Clamping to Ø65mm
picture_af_58c_65_m4_small Adapter Flange 58C-65 (M5) ø58mm Clamping to Ø65mm
picture_af_42g_58_small Adapter Flange 42G-58 ø42mm Synchro to Ø58mm

Adapter flanges are generally used with POSITAL encoders to exactly fit into the customers’ installation or control cabinet. A new set of commonly used adapter flanges will be released soon.

Mounting Bracket – Synchro

The mounting bracket enables an easy and low cost option for all rotary encoders with a Ø58mm synchro flange. The mounting dome is made of fiber glass reinforced plastic. This enables complete insulation both thermal as well as electrical. The mounting of the encoder can be done either using the screws or clamp discs provided.

Mounting Bracket – Clamping

The mounting bracket enables an easy and low cost option for all rotary encoders with a Ø58mm clamping flange. The mounting dome is made of fiber glass reinforced plastic. This enables complete insulation both thermal as well as electrical. The mounting of the encoder can be done using the screws provided.

Mounting Bracket – Angled

A very simple and low cost angled mounting bracket suitable for all encoders with a Ø58mm clamping flange.

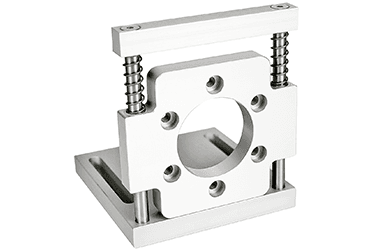

Mounting Bracket – Spring Loaded

Special spring loaded mounting adapter. It is customized to fit all encoders with a Ø58mm clamping flange along with the 500mm measurement wheels. The spring feature ensures optimal positioning of the encoder/ measurement wheel and guarantees a constant pressure on the measurement surface.
