| Ordering Code | 10034918 - CBL-M12S-M05A-100DB-052N-001 |
| Weight | 550 g |
| Operating Temperature | -25°C (-13°F) to 80°C (176°F) |

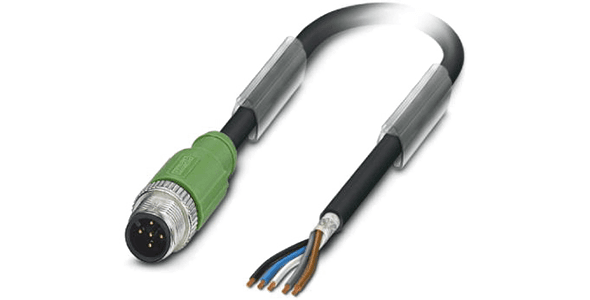

| Name | 10034918 - 10m PUR Cable, 5pin, A-Coded, m |
| Standards/Regulations | M12 Connector |
| Coding | A - Standard |
| Gender | Male |
| Number of Positions | 05 |
| Contact Surface Material1 | Ni/Au |
| Housing Material1 | TPU (Plastic) |
| Knurls Material1 | Zinc die-cast, nickel-plated |
| Degree of Protection1 | IP67 |
| Fixing Torque1 | 0.4 Nm (M12 Connector) |
| Standards/Regulations | Open Wire End |
| Length of Cable | 10.0 m |
| Outer SheathType | PUR |
| Outer Sheath Color | Black-gray RAL 7021 |
| Shielding | Braided Shielding |
| Material Conductor Insulation | PP |
| Conductor Cross Section (in sqmm) | 5 x 0.34 |
| Number of Leads | 5 Leads |
| Twisted Pair | No |
| AWG Signal Line | AWG 22 |
| External Cable Diameter | 5.9 mm ± 0.2mm |
| Smallest Bending Radius - Fixed Installation | 29.5 mm |
| Smallest Bending Radius - Movable Installation | 59 mm |
| UL Style | UL 20549 |
| Insulation resistance * (per km) | ≥ 70 GΩ*km |
| Conductor Resistance * (per km) | ≤ 57 Ω/km |
| Product Life Cycle | Established |
