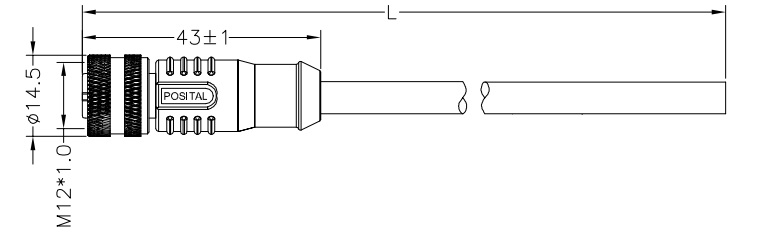

| Name | 10034547 - POS M12 5pin-A Female+5m PUR Cable |
| Ordering Code | 10034547 - POS-CBL-M12S-F05A-050DH-054N-000 |
| Weight | 300 g |
| Weight | 300 g |
| Operating Temperature | -25°C to 85°C / -13°F to 185°F |
| Operating Temperature | -25°C (-13°F) to 80°C (176°F) |
| Standards/Regulations | M12 Connector |
| Coding | A - Standard |
| Gender | Female |
| Number of Positions | 05 |
| Contact Surface Material1 | Brass (Gold Plated) |
| Housing Material1 | TPU (Plastic) |
| Knurls Material1 | Brass, Nickel Plated |
| Contact Connection Method1 | N.A |
| Degree of Protection1 | IP67 |
| Fixing Torque1 | 0.4 Nm (M12 Connector) |
| Standards/Regulations | Cable Cut |
| Length of Cable | 5.0 m |
| Outer SheathType | FR-TPU (UV) |
| Outer Sheath Color | Black |
| Shielding | Braided + Foil Shielding |
| Material Conductor Insulation | PP |
| Conductor Cross Section (in sqmm) | 5 x 0.25 |
| Number of Leads | 5 Leads |
| Twisted Pair | No |
| AWG Signal Line | AWG 24 |
| External Cable Diameter | 5 mm ± 0.15mm |
| Smallest Bending Radius - Fixed Installation | 25 mm |
| Smallest Bending Radius - Movable Installation | 50 mm |
| UL Style | UL 20549 |
| Insulation resistance * (per km) | ≥ 10 MΩ*km |
| Conductor Resistance * (per km) | ≤ 93.25 Ω/km |
| Certificates | UL Listed/ CE / RoHS |
| Product Life Cycle | Established |
