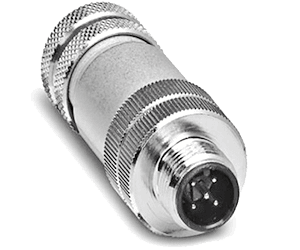

| Name | 10009475 - M12, 5pin A-Coded, Male |
| Ordering Code | 10009475 - CTR-M12S-M05A-NPSC |
| Weight | 50 g |
| Operating Temperature | -40 °C / -40° F to 85 °C / 185° F |
| Standards/Regulations | M12 Connector |
| Coding | A - Standard |
| Gender | Male |
| Number of Positions | 05 |
| Contact Surface Material1 | Au |
| Housing Material1 | Zinc Die-cast, Nickel Plated |
| Knurls Material1 | Zinc die-cast, nickel-plated |
| Contact Connection Method1 | Screw Connection |
| Degree of Protection1 | IP67 |
| Fixing Torque1 | 0.4 Nm (M12 Connector) |
| Cable Diameter Range1 | 4 - 6 mm |
| Conductor AWG Range1 | 24 - 18 |
| Cross Section Range1 | 0.25 - 0.75 mm^2 |
| Product Life Cycle | Established |
