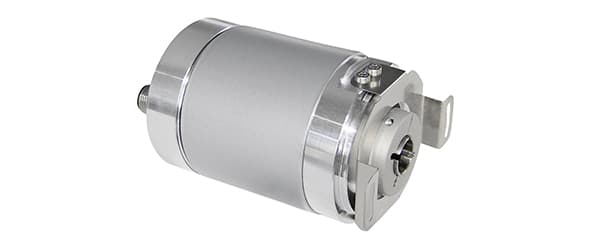

| Interface | CANopen |
| Profile | DS-406 |
| Manual Functions | Programmable |
| Features | Round Axis |
| Transmission Rate | min. 20 kBaud, max. 1 MBaud |
| Interface Cycle Time | ≥ 1 ms |
| Programming Functions | Resolution, preset, 2 limit switches, 8 CAMS, baud rate, CAN-Identifier, bootloader, transmission modes: polled, cyclic, sync |
| Output Driver | Transceiver (ISO 11898), Galvanically Isolated by Opto-Couplers |
| Supply Voltage | 10 – 30 VDC |
| Current Consumption | ≤ 300 mA @ 10 V DC, ≤ 150 mA @ 24 V DC |
| Power Consumption | ≤ 3.7 W |
| Reverse Polarity Protection | Yes |
| Short Circuit Protection | Yes |
| EMC: Emitted Interference | DIN EN 61000-6-4 |
| EMC: Noise Immunity | EN 61000-6-2 EN 61326-3-2 & EN 61000-6-7 |
| MTTF | 100 years @ 40°C (based on EN ISO 13849-1) |
| Technology | Optical + Magnetic |
| Resolution Singleturn | 16 bit |
| Resolution Multiturn | 14 bit |
| Multiturn Technology | Mechanical gearing (no battery, optical scanning) + Self powered magnetic pulse counter (no battery, no gear) |
| Accuracy (INL) | 13 bit: ±0.1317° + 1 LSB quantization @ R<sub>T</sub> 16 bit: ±0.1098° + 1 LSB quantization @ R<sub>T</sub> |
| Code | Binary |
| Protection Class (Shaft) | IP65 |
| Protection Class (Housing) | IP65 |
| Storage Temperature | -40 °C (-40 °F) – +85 °C (+185 °F) |
| Humidity | 98% RH, no condensation |
| Max Temperature | +85 °C (+185 °F) |
| Min Temperature | -40 °C (-40 °F) |
| Connection Cap Material | None |
| Housing Material | Aluminum |
| Housing Coating | No Coating |
| Flange Type | Blind Hollow, ø 58 mm (B) |
| Flange Material | Aluminum |
| Shaft Type | Blind Hollow, Depth = 30 mm |
| Shaft Diameter | ø 15 mm (0.59") |
| Shaft Material | Stainless Steel V2A (1.4305, 303) |
| Rotor Inertia | ≤ 30 gcm² [≤ 0.17 oz-in²] |
| Friction Torque | ≤ 3 Ncm @ 20 °C (4.2 oz-in @ 68 °F) |
| Max. Permissible Mechanical Speed | ≤ 12000 1/min |
| Shock Resistance | ≤ 100 g (half sine 6 ms, EN 60068-2-27) |
| Permanent Shock Resistance | ≤ 10 g (half sine 16 ms, EN 60068-2-29) |
| Vibration Resistance | ≤ 10 g (10 Hz – 1000 Hz, EN 60068-2-6) |
| Length | 93 mm (3.66") |
| Weight | 295 g (0.65 lb) |
| Maximum Axial / Radial Misalignment | Static ± 0.3 mm /± 0.5 mm; Dynamic ± 0.1 mm /± 0.2 mm |
| Connection Orientation | Axial |
| Connection Type | Cable / Connector |
| Safety Performance Level | Capable PL d, encoder shall be connected to a safety PLC for verification of both encoder channels |
| Safety Category | Capable Cat. 3, encoder shall be connected to a safety PLC for verification of both encoder channels |
| Product Life Cycle | New |
| Signal | Connector | Pin Number |
|---|---|---|
| Power Supply | 1 | 2 |
| GND | 1 | 3 |
| CAN High | 1 | 4 |
| CAN Low | 1 | 5 |
| CAN GND | 1 | 1 |
| Power Supply | 2 | 2 |
| GND | 2 | 3 |
| CAN High | ||
| 2 |
| 4 |
| CAN Low | 2 | 5 |
| CAN GND | 2 | 1 |
